Joint Hidden Powerful Boltless Roof Panel Roll Forming Machine, steel seam self lock, 760type

Quick Detail:

1. Thickness : 0.4mm-0.8mm
2. Material : PPGI, soft-full hard yield strength
3. Input width : 1000mm
4. Effective width: 760mm
5. Material weight : can design the un-coiler capacity as per request, normally 5Mt coil weight
6. Coil inner diameter : 510mm
7. Cutting tolerance : ±1mm

Machine list:

1. Hydraulic de-coiler
2. Roll former with 20mpm
3. Hydraulic cutter
4. Run out table or automatic stacking device
5. Siemens PLC and IOP/ touch screen, Schneider/Shihlin/Delta brand inverter

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with/without coil car

The un-coiler capacity normally is 5MT, but we can provide as per the user’s request such as 6MT, 7MT, 8MT, 10MT

The driven motor also can be designed suitable with the roll forming speed 15mpm

• Entry Roller & Manual Pre-shearing device (Un-powered)

To cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

• Roll forming machine with cutting details as below table :

• PLC Control System--as request
• Product Rack Un-powered, 3 units

Packing standard:

Nude cargoes for roll former, polythene wooden box for PLC control cabinet

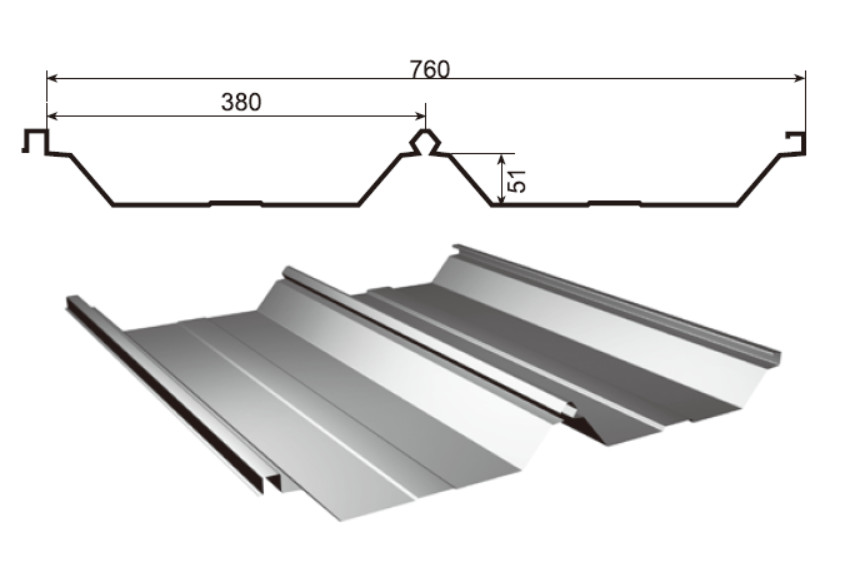

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
