Stud And Track Roll Forming Machine ,light gauge batten machine

Quick Detail:

1. Thickness :0.4mm-0.8mm
2. Input width : 121mm
3. Material weight: 1.5MT cap.
4. Driven way: by 4Kw driven motor
5. Cutting way: waste cut
6. Cutting tolerance : ±1mm

Machine list:

1. 1.5MT*300mm manual un-coiler or driven motor
2. Roll former
3. Hydraulic cutting machine
4. Run out table
5. PLC control cabinet

General instruction:

The steel battens work most of time as roofing and ceiling. Steel foof and ceiling battens are light yet strong, offering an economical alternative to timber battens. Manufactured from hi-tensile zinc/al steel, the battens are capable to remain straight and consistent throughout their long life. The HAT shaped profile of the batten allows for nesting, making them easier to store, carry and handle.

There are so many metal or steel batten systems available for domestic internal use and even available for cyclonic and high wind regions.

The common reasons for applying steel roof and battens are as following:

Helps to prevent plaster board from cracking, which can happen when directly fixing the lining boards to timber.

It’s easy to obtain a flat level ceiling even if the timber is uneven.

Fixing of ceiling batten along with some clips will reduced impact of noise between the top and bottom floor in a residential house.

Timber shrinkage is less likely to affect steel battened linings.

Less chance for call-back maintenance saves time and money.

Description/Technical Parameter details of complete line:

• 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 6 meter length, rolled type

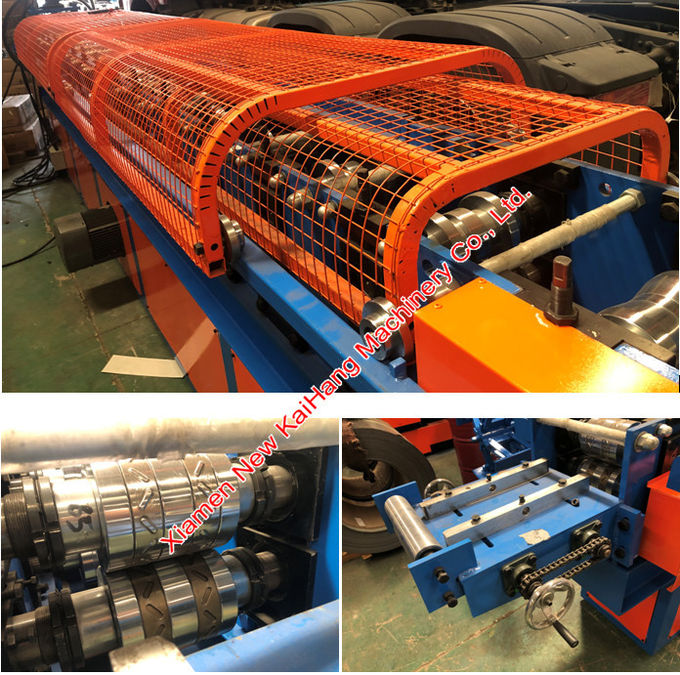

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
