Metal Steel Roofing Sheet Roll Forming Machine , Dual Layer Roll Forming Machine,0.4-1.0mm thickness

Quick Detail:

1. Thickness : 0.4-1.0mm
2. Material : G550/G350, pre-painted sheets
3. Input width : 1038/1140mm
4. Coil ID: 508mm
   1. Effective width:914.4+/-4mm
   2. Material weight: 6Tons cap.
   3. Driven motor: 11Kw motor with gear box normally
   4. Cutter Material: Cr12, heat treatment

Application:

Sometimes when a client needs to produce two different metal sheets, cladding, trapezoidal, corrugated sheets or metal tiles, a double layer roll forming machine always comes to mind.

A double layer roll forming machine has two layers or two levels of roll forming parts which gives it another name dual level roll forming machine, and because this machine makes two metal sheets, and double sheet roll forming machine is also a familiar name to people. (Similar machines are like two-in-one roll forming machine and cassette type roll forming machine.)

Machine list:

1. Hydraulic De-coiler
2. Dual layer roll former
3. Two sets of hydraulic cutting device
4. Run out table or automatic stacking device
5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

• 6TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 4KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 4KW, manual frequency speed control

Other design such as snubber arm /support arm/coil car as per request

• Hydraulic Pre-shearing e
• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 3 units
• Packing details

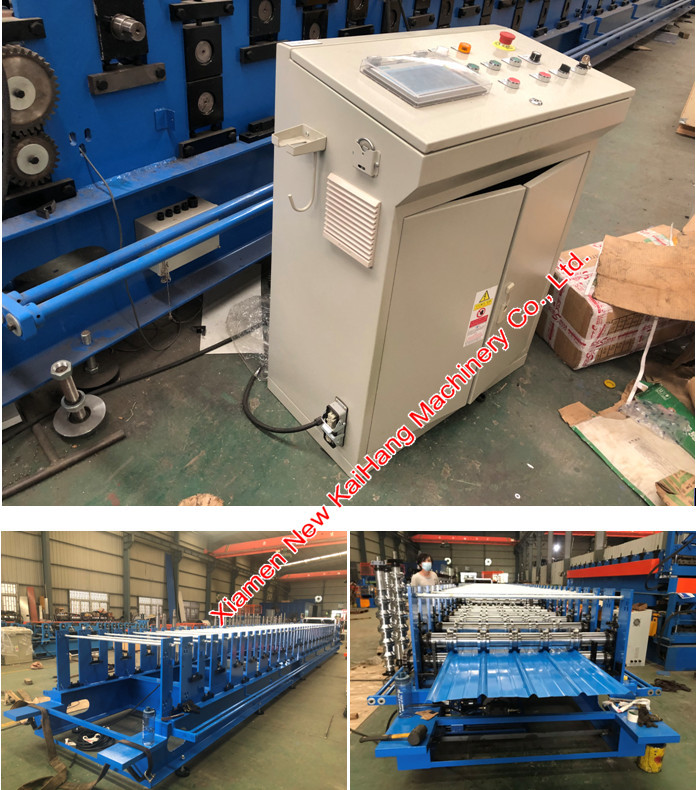

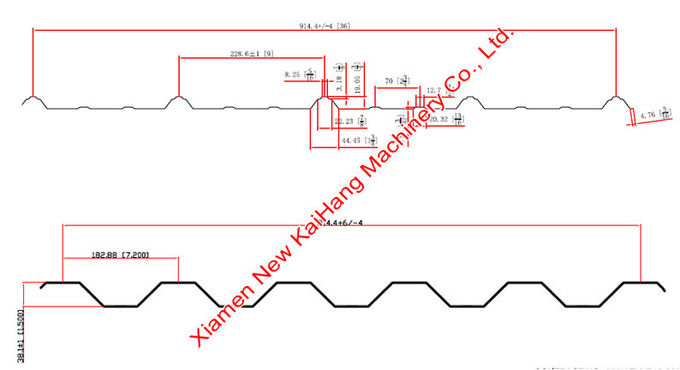

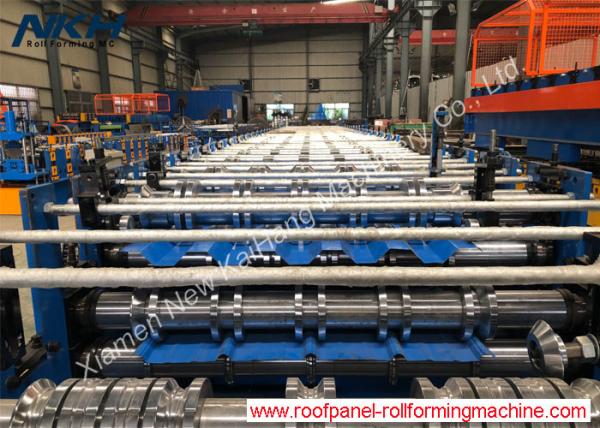

Profile Drawing/Layout/Equipment reference pictures:
