Angle Profile roll forming machine, Steel Frame Purlin Machine, L30-100 angle, 2-4mm with punching​

Quick Detail:

1. Thickness : 2.0mm-4.0mm
2. Material : Galvanized sheets
3. Material weight : 2.0Mt
4. Coil inner diameter : 508mm
5. Driven way: by 11kw driven motor
6. Cutting way: by hydraulic power pack, pre-punch, post punch, post cut
7. Cutting tolerance : ±1mm

Application:

The angle steel can be composed of various force-receiving members according to the different needs of the structure, and can also be used as a connecting member between the members. Widely used in various building structures and engineering structures, such as house beams, bridges, transmission towers, cranes, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, etc.

Machine list:

1. Manual Un-coiler rack
2. Pre-leveling device
3. Roll forming machine
4. Hydraulic Pre-punch & Post-punch & Post- cut device
5. Run out table
6. PLC control systems

Description/Technical Parameter details of complete line:

• 2.0TX300mm Manual Un-coiler

Manual de-coiler

• Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

• Roll forming machine with pre-punching & post punching & post cutting details as below table :

• PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Loop control

Control voltage 24V

• Product Rack 4 meter long ,rolled type

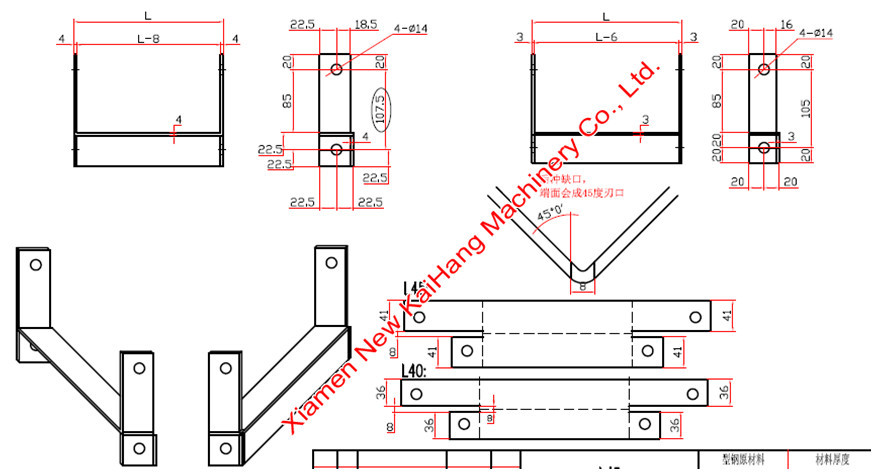

Profile Drawing/Layout/Equipment reference pictures:
