    20m/min Siemens PLC Control Roof Panel Roll Former With GCr15 Roller

    Ask Lasest Price
    Brand Name : NKH MACHINERY

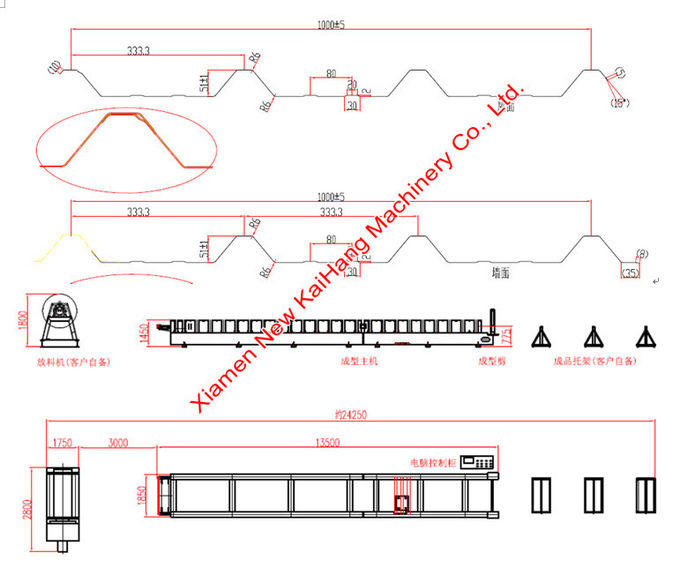

    Model Number : YX51-333-1000
    Certification : CE/SONCAP/
    Price : Negtiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 03 UNITS/MONTH
    Delivery Time : 50 WORKING DAYS
    • Product Details
    • Company Profile

    20m/min Siemens PLC Control Roof Panel Roll Former With GCr15 Roller

    11500 X 1650 X 1500mm 5 Tons Roof Panel Roll Forming Machine PLC Control System

    Product parameter

    NoItemDescription
    1CoilWidth:12201250mm
    2Forming speed20m/min (not including cutting time)
    3Roller Stations24stations
    4Material of RollerGCr15, heat treatment, hard chrome coated
    5Material of Main Shaft45# steel finishing machining and then slack
    6Material of Shaft95 mm 45#steel forged
    7Driven Motor Power15KW
    8Hydraulic Station Power5.5KW
    9Hydraulic Station Pressure12.0 Mpa
    10Electrical Control SystemSiemens PLC
    11Dimension (L*W*H)11500*1550*1200mm
    12Material of CutterGCr12Mov
    13Driving Modesingle chain 1.2 inch
    14Material Thickness0.6-1.0mm
    15Power Supply2200V, 60HZ, 3 PHASES
    16Cutting accuracy±1 mm



    Machine Parts

    Name: Rollers
    In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.
    Roller chrome coated thickness: 0.03 mm
    Roller material: Forging Steel 45# heat treatment, coated


    Hydraulic Ue-coiler

    Single - head de-coiler, unilateral discharge
    Using electric
    pressure internal intensify
    Max. loading weight : 10tons
    Max. coiling diameter: 1800mm
    Cylinder diameter: 120mm
    Working pressure: 10mpa
    Coiling inner diameter: 450mm - 620mm


    Product advantages

    1. Speeds up to 20m/min
    2. Produce single layer profile
    3. Best price
    4. Good quality
    5. Power enery save
    6. Long last lifetim
    7. Easy Operation
    8. We are the manufacturer and can design the profile accordingly
