C75 stud and track roll forming machine for roofing buildings, GI sheets

Quick Detail:

1. Thickness : 0.8-1.2mm
2. Material : Galvanized steel
3. Material weight: 1.5MT cap.
4. Driven way: by 5.5Kw driven motor
5. Cutting way: by hydraulic power pack, there is waste after cut-off
6. Cutting tolerance : ±1mm

Application:

On a heavy gauge metal or steel structural building, people always use C steel purlins or Z steel purlins to build the steel frames and roof trusses, while Metal furring channels or roof channels climb to the top of components lists for roof trusses of lightweight or light gauge steel frames.

The metal furring channels or hat channels are produced from thin galvanized steel (0.6-1.2mm thickness) by roll forming machines and a metal furring channel or hat channel roll forming machine, like other lightweight or light gauge steel frame roll forming machines, generally consists of a manual de-coiler, a feeding unit, an embossing rolling tool, a roll forming unit, a cutting unit, a transmission system, a cutting unit, a hydraulic oil pump, a PLC control system and runout tables.

Machine list:

1. 1.5MT*300mm manual un-coiler
2. Roll forming machine
3. Hydraulic cutting device
4. Run out table
5. PLC control system

Description/Technical Parameter details of complete line:

• 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter length rolled type

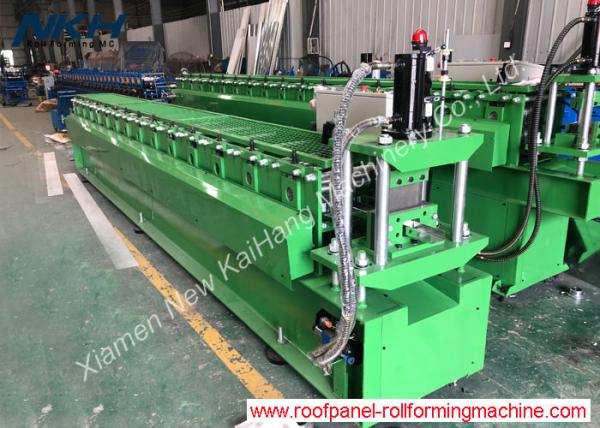

Profile Drawing/Layout/Equipment reference pictures:
