Ceiling grid roll forming machine, ceiling and roof batten roll forming machine

Quick Detail:

1. Thickness : 0.4-0.6mm
2. Material : Galvanized steel
3. Material weight: 1.5MT cap.
4. Driven way: by 5.5Kw driven motor
5. Cutting way: by hydraulic power pack, there is waste after cut-off
6. Cutting tolerance : ±1mm

Application:

Due to the technology monopoly, there are rarely Chinese manufacturers can provide steel framing solutions for lightweight or light gauge steel buildings, but for a drywall stud and track roll forming machine production, Chinese manufacturers are no-doubt reliable.

A drywall stud and track roll forming machine usually consists of manual de-coiler, a feeding guide unit, a punching tool, a roll forming unit, a cutting unit, a transmission unit, a hydraulic unit, a control unit, and run-out tables. Under PLC control system, this drywall stud and track roll forming machine fully automatically produces 4-6 metal c studs or u tracks out of galvanized steel of 0.6-1.2mm thickness from punching, roll forming and cutting.

Machine list:

1. 1.5MT*300mm manual un-coiler
2. Roll forming machine
3. Hydraulic cutting device
4. Run out table
5. PLC control system

Description/Technical Parameter details of complete line:

• 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter length rolled type

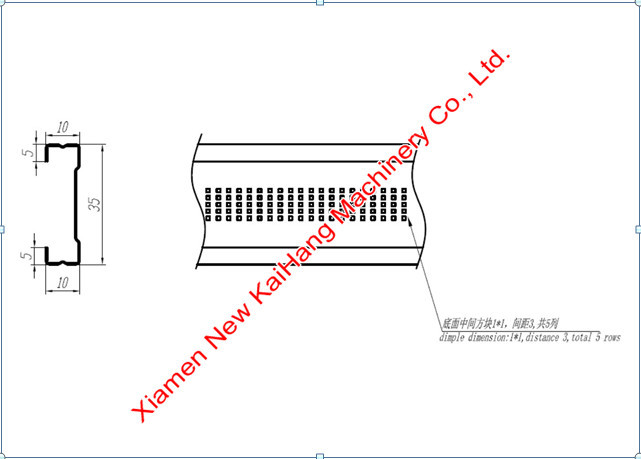

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
