Ceiling roll forming machine, roll former, fascia panel, Malaysia standard type

Application:

This production line has been designed to produce metal wall or sandwich panels with PU or Polyurethane insulated and various decoration patterns embossed, engraved or printed on the metal face.

This profile is widely used all around the world.

Quick Detail:

1. Thickness : 0.42mm
2. Material : G350 PPGI
3. Input width : 290mm
   1. Effective width: 185mm
   2. Material weight : 3Tons
   3. Coil inner diameter : 480mm
   4. Driven way: by 7.5Kw driven motor
   5. Cutting way: after cut-off, there is waste
   6. Cutting tolerance : ±1mm

Machine list:

1. 3TX600mm Hydraulic Un-Coiler
2. Roll forming machine
3. Hydraulic cutting device
4. Run out rack
5. PLC control system

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms
Link-connect expanding system
Pump power=1.5KW
Drag off turning type
Load capacity=3Ton
Coil Inner – diameter =510 30mm
Coil outer-diameter=Max.1500 mm
Coiler Width=Max. 600 mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, rolled type, 4 meter long

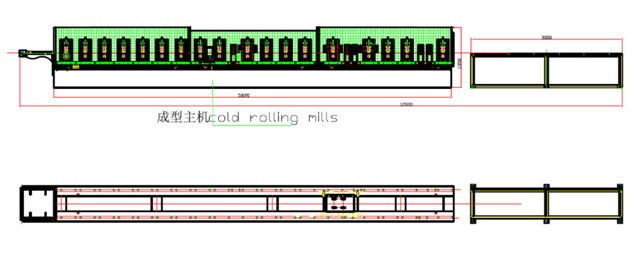

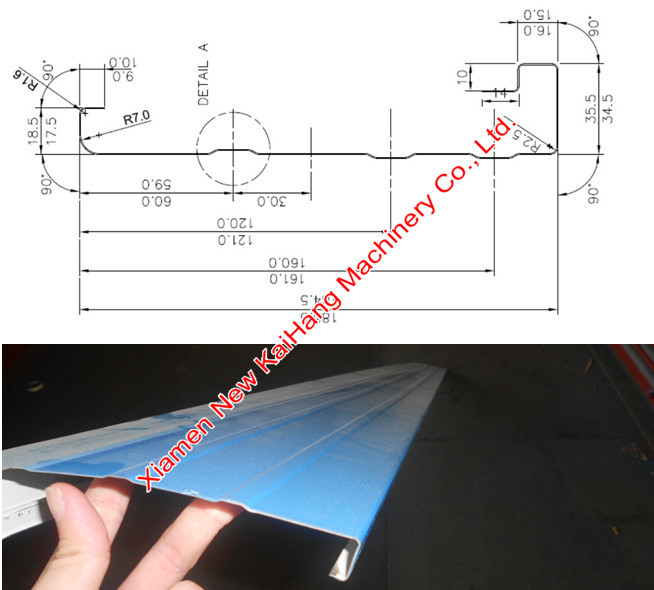

Profile Drawing/Layout/Equipment reference pictures:
