Ceiling rolling machine with punching tooling, pre-painted color, roll former

Quick Detail:

1. Thickness : 0.38-0.6mm
2. Material : G350 PPGI
3. Input width : 245mm
   1. Effective width: 161mm
   2. Material weight : 1.5Tons
   3. Coil inner diameter : 470mm
   4. Driven way: by 5.5Kw driven motor
   5. Cutting way: 11Kw pump motor
   6. Cutting tolerance : ±1mm

Machine list:

1. 1.5TX300mm driven Un-Coiler
2. Roll forming machine
3. Hydraulic punching & cutting device
4. Run out rack
5. PLC control system

Description/Technical Parameter details of complete line:

• 1.5TX300mm driven Un-Coiler

Link-connect expanding system

Coil Width= Max.300mm

Load capacity= Max.1.5Ton

Coil inner–diameter=420-550mm

Outside-diameter: Max. 1600mm

Retarding Motor to turn the coil, Motor: 1.5KW, frequency speed control

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, rolled type, 4 meter long

Features:

We sold this to Azerbaijan before; it is produced by pre-painted sheets

The formed sheets are with good outcome for different color coils.

There are many holes one side and the holes punched after form irregularly

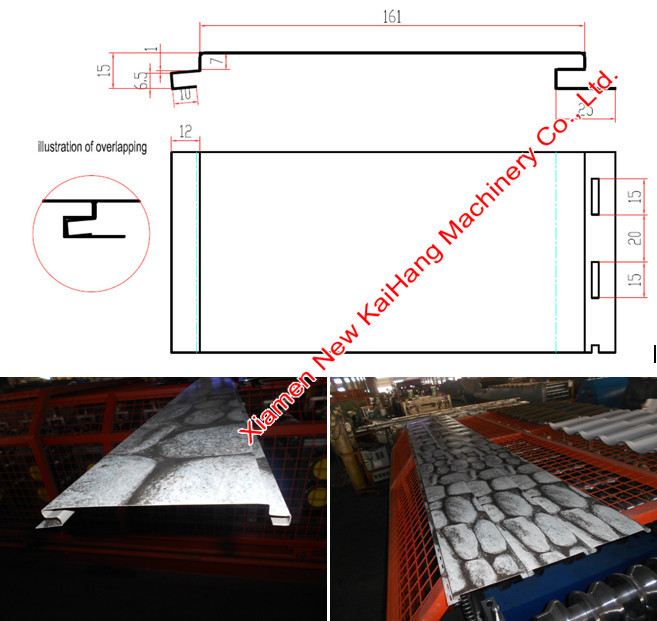

Profile Drawing/Layout/Equipment reference pictures:
