Slitting line for 1.0mm metal sheets, light gauge design, cut to length line machine

Quick Detail:

1. Thickness : 0.4-1.0mm
2. Material : GI, PPGI, or Stainless steel, Aluminum
3. Slitting strips: 5 strips/time
4. Line speed : 12meter/min
5. Material weight : 5Mt normally
6. Coil inner diameter : 508mm
7. Cutting tolerance : ±1mm

Application:

Metal sheets or strips suppliers always need slitting and cut to length machine line for the production of metal sheets with different widths or lengths from GI, PPGI, or Stainless coils in large quantities.

GI, PPGI or Stainless coils are always brought to make wide metal sheets, like roll formed roofing or wall panels, while there are many occasions narrow steel strips are necessary, for example, the production of stud and tracks, roof battens or angle steel bars is always made from narrow steel strips.

A steel mill most of time produces only wide steel coils, and steel or metal fabricators always use a slitting and cut to length machine line to manufacture steel strips with different widths or metal sheets with fixed lengths.

Machine list:

1. 5Tons hydraulic De-coiler
2. Simple pre-leveling device
3. Slitting device
4. Guillotine device
5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW

Delta brand inverter

• Simple pre-leveling device
• Slitting and guillotine details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 3 meter long

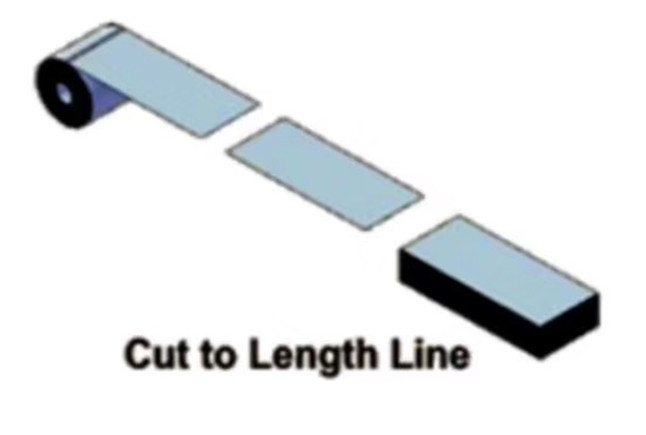

Profile Drawing/Layout/Equipment reference pictures:
