6Tons hydraulic de – coiler for metal roof/ wall roll forming machine, improved design

Quick Detail:

1. Thickness : 0.4mm-0.8mm
2. Material : GI, PPGL, full hard or soft material
3. Input width:914/940/1000/1220/1250mm
4. Material weight: Max. 6MT

Description/Technical Parameter details of the de-coiler

Hydraulic system expand coil inner hole, Pump motor: 3KW

Frequency Inverter to regulate turning speed, Motor: 3KW

TAIWAN Delta brand inverter

Taper wedge expand type

Coil Inner-diameter=510+/-30mm

Coil width = Max.1250mm

Load capacity = Max. 6Tons

Manual support arm at the end of the main mandrel

Two hydraulic cylinders to lift up/down

Up/Down stroke of Coil Car: Max. 350mm

Forward/Back stroke of the Coil Car: Max. 2000mm

Application:

Coil car required or not according to the user’s operation solution, Coil car/ crane/ lift fork can be the same function for loading/un loading of the coil, while coil car included can improve the loading/unloading speed, especially for slitting & cut to length re-coiling line

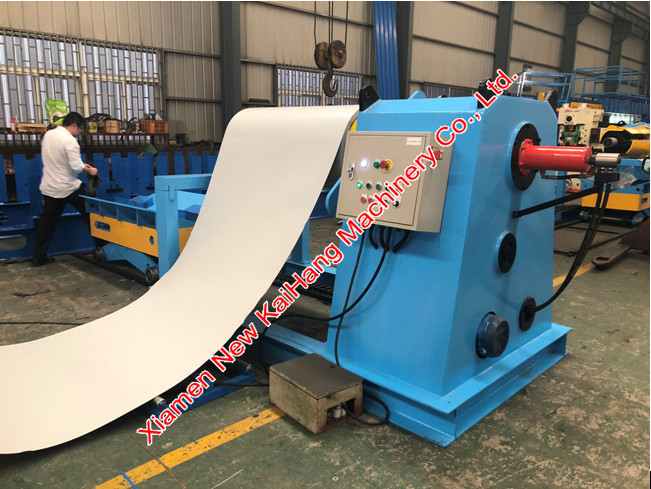

Profile Drawing/Layout/Equipment reference pictures:
