Metal roof ridge cap roll forming machine, PPGI steel color coated flashing machine

Application:

A top roof ridge cap roll forming machine wins its name by the purpose or function of producing top roof ridge cap, while a roof valley flashing roll forming machine most of time makes valley flashing or roof valley flashing, which are installed mainly in the valleys where the runoff is concentrated.

Quick Detail:

1. Thickness : 0.25-0.4mm
2. Material : Galvanized Sheets
3. Input width : 375mm
4. Material weight : 3MT
5. Coil inner diameter : 470 mm
6. Driven way: by driven motor
7. Cutting way: no waste cut
8. Cutting tolerance : ±1mm

Machine list:

1. 3T*600mm hydraulic un-coiler
2. Roll former
3. Hydraulic cutting device
4. Run out table
5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Pump power=1.5KW

Load capacity=3 Ton

Coil Inner – diameter =451-530 mm

Coiler Width=Max. 600 mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 3 units

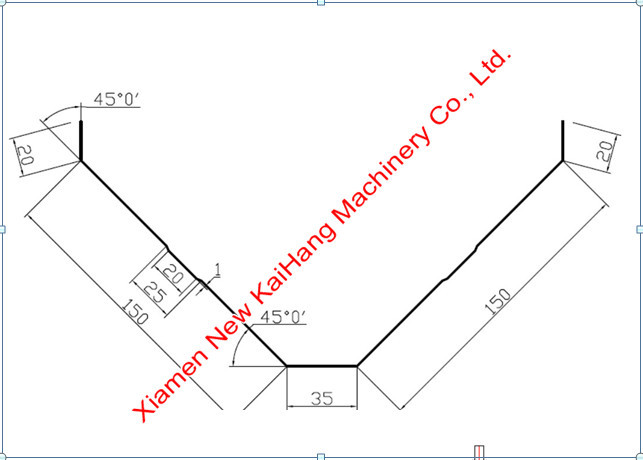

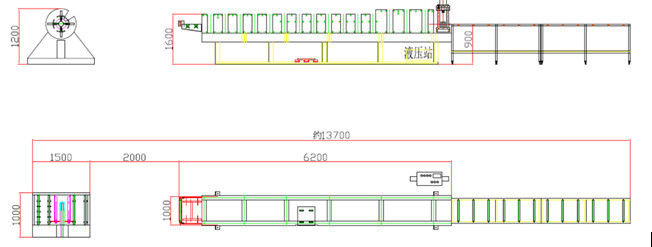

Profile Drawing/Layout/Equipment reference pictures:
