Water gutter roll forming machine, seamless gutter

Quick Detail:

1. Thickness : 0.25-0.4mm

2. Material : G550 full hard Galvanized Sheets

3. Input width :406mm

4. Material weight : 3MT

5. Coil inner diameter : 510 mm

6. Driven way: by driven motor

7. Cutting way: no waste cut

8. Cutting tolerance : ±1mm

Application:

A gutter roll forming machine work with the flashing and downpipe and end cap and support fixing as a water roof systems

High Production Roll Forming Machine for Gutter, forming machine, water gutters cold roll forming machinery, greenhouse gutter forming machine, greenhouse gutter making machine, gutter could roll forming machine, greenhouse gutter roll forming line, greenhouse gutter making machine, green house gutter rolling machine.

Machine list:

1. 3T*600mm hydraulic un-coiler or manual un-coiler

2. Roll former

3. Hydraulic cutting device

4. Run out table

5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms
Pump power=1.5KW
Load capacity=3 Ton; Coil Inner – diameter =451-530 mm
Coil outer-diameter=Max. 1500 mm
Coiler Width=Max. 600 mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, rolled type, 4 meter long

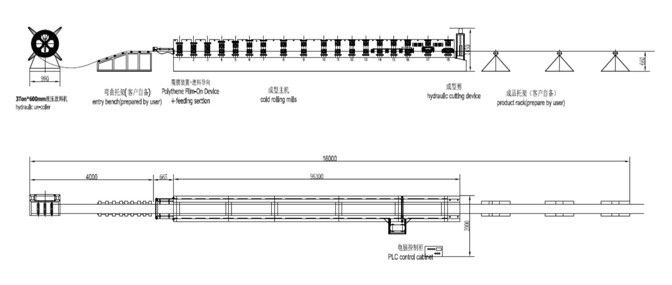

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
