Twin sides roll forming machine for C/ U decorative/ ceiling panel, 0.4-0.8mm GI material

Quick Detail:

1. Thickness : 0.4-0.6mm
2. Material : GI, 550Mpa
3. Input width : 134/225mm
   1. Material weight: 1.5MT cap.
   2. Driven way: by 4Kw driven motor
   3. Cutting way: stop to cut, there is waste after cut-off
   4. Cutting tolerance : ±1mm

Machine list:

1. 3MT*600mm hydraulic un-coiler
2. Roll forming machine
3. Hydraulic cutting device
4. Run out table
5. PLC control system

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic de-coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Link-connect expanding system

Pump power=1.5KW

Frequency Inverter to regulate turning speed: Motor: 2.2KW

Load capacity=3Ton;

Coil Inner – diameter =451-530mm

Coiler Width=Max.600mm

Driving motor to turn the coil

You can also adopt to the coil car for quick loading/unloading

• Roll forming machine with cutting details as below table :

• PLC Control System

The two profile share in one control system

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter length rolled type

Application:

All-in-one roll forming is a solution to produce fully automatically two or more roll formed profiles on the same machine without changing rolling tools and cutting dies. The most commonly designed all-in-one roll formers are two-in-one roll forming machines, and there are two types two-in-one roll forming machines, vertical type and horizontal type; a vertical two-in-one roll forming machine has some literal names, such as double layer roll forming machine, double deck roll forming machine, duplex profile roll forming machine, and dual level roll forming machine etc, while a horizontal type two-in-one roll forming machine usually is known as a twin rows roll forming machine or double rows roll forming machine.

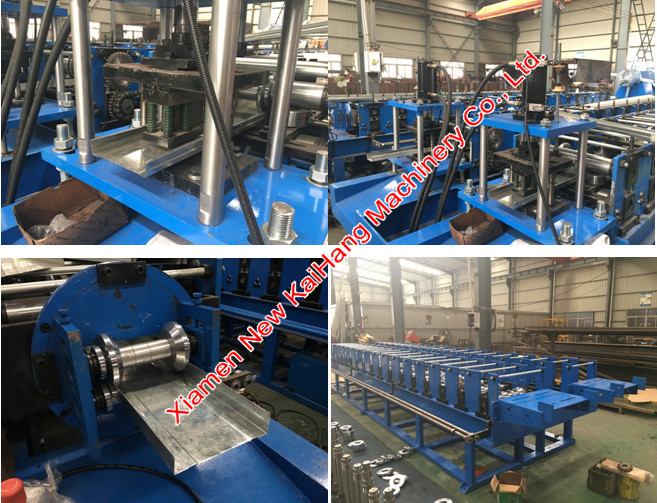

Profile Drawing/Layout/Equipment reference pictures:
