Three layer/ level roll forming machine for roofing / corrugated panel, rollforming

Brief Introduction:

The three layers of roll forming parts on this three layer roll forming machine cannot work at the same time, which means left two of the roll forming systems (top roll forming and middle and bottom roll forming) will stop when the other is working.

A three layer roll forming machine has three layers or three levels of roll forming parts. When the rent rate is more and more expensive in the modern days, still many person consider three similar roofing/wall cladding profile in one machine for below two functions

1. Share the un-coiler and motor and PLC control system and hydraulic group together, can save the cost
2. To save the space of the factory

While if any layer profile has problems, and when you want to check, it is not so convenient, so it is the main issue for daily maintaining.

Quick Detail:

1. Thickness : 0.4-0.8mm
2. Material : G550/G350, pre-painted sheets
3. Input width : 914/1000/1219/1250mm
4. Coil ID: 508mm
   1. Effective width:760/820/1000+/-4mm
   2. Material weight: 5Tons cap.
   3. Driven motor: 11Kw motor with gear box normally
   4. Cutter Material: Cr12, heat treatment

Machine list:

1. Hydraulic De-coiler
2. Dual layer roll former
3. Two sets of hydraulic cutting device
4. Run out table or automatic stacking device
5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW, manual frequency speed control

Other design such as snubber arm /support arm/coil car as per request

• Entry Roller & Manual Pre-shearing device

Two sets of pre-shearing device

to cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 3 units

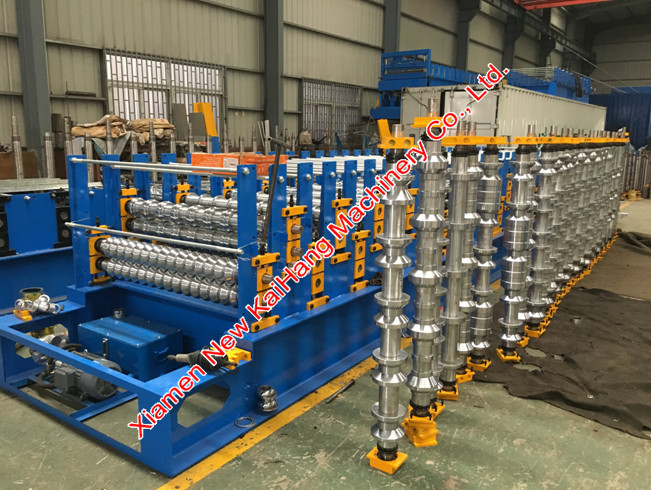

Profile Drawing/Layout/Equipment reference pictures:
