Safety guard fencing roll forming production line for roofing/ cladding panel

Application:

25-267.5-1075 wall cladding sheet roll forming machine is a common wall sheet roll forming machine in European market such as in France with CE certificate required.

Normally, the full mesh around un-coiler and the roll forming machine and cutting device is required as the CE request, the interlock and safe relay is also included

Metal sheet roll formers are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here.

Quick Detail:

1. Thickness : 0.4-0.8mm
2. Material : G550, pre-painted sheets
3. Input width : 1250mm
4. Coil ID: 508mm
   1. Effective width:1075+/-4mm
   2. Material weight: 5/6/7/10 MT
   3. Certificate : CE by TUV
   4. Driven motor: 11kw motor with gear box or higher
   5. Cutter Material: Cr12, heat treatment

Machine list:

1. 5T*1250mm hydraulic de-coiler as standard design
2. Roll forming machine
3. Hydraulic cutter
4. Run out rack
5. PLC control system
6. CE certificate included

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW,

Delta/Schneider brand inverter

Other design such as snubber arm /support arm/coil car as per request

Fence around the un-coiler

• Entry bench & Manual Pre-shearing device

to cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Cut to length control

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Schneider brand low voltage electric elements

• Product Rack 3 units, no power rack

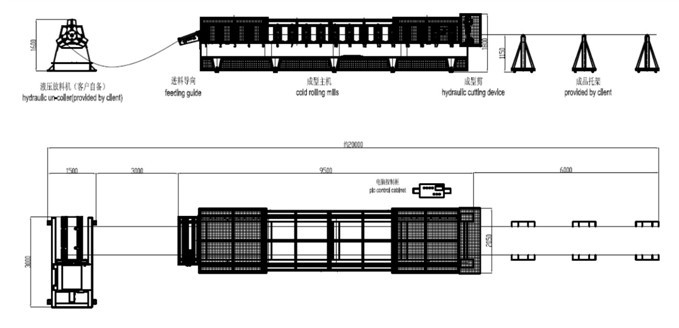

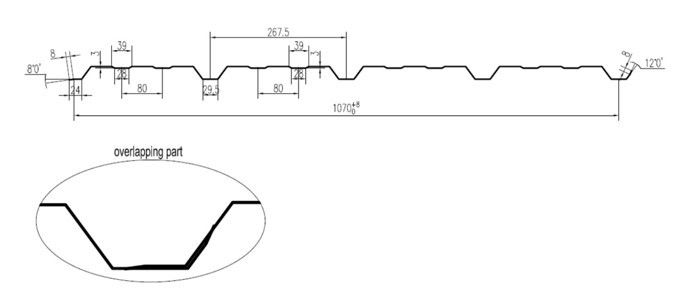

Profile Drawing/Layout/Equipment reference pictures:
