Reliable corrugated steel metal roof panel machine

Features:

Like another popular metal sheet machine, IBR sheet roll forming machine, corrugated sheet roll forming machine makes metal roofing and siding panels from the materials of 0.3-0.8mm thickness and 914-1250mm widths.

And it consist of un-coiler, entry bench and manual pre-shearing device, roll former and cutting device and product rack and PLC control systems

Quick Detail:

1. Thickness : 0.4-0.8mm
2. Material : G345-550, pre-painted sheets
3. Input width : 1250mm
   1. Effective width: 980+/-4mm
   2. Material weight: 5MT
   3. Coil inner diameter : 508mm
   4. Driven way: by 7.5KW driven motor
   5. Cutting way: by 4kw hydraulic power pack
   6. Cutting tolerance : ±1mm

Machine list:

1. Hydraulic un-coiler with/without coil car
2. Entry bench & Manual pre-shearing device
3. Roll forming machine
4. Hydraulic cutting device
5. Product Rack
6. PLC control systems

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons

Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW,

Manual frequency speed control

• Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control

To cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

• Roll forming machine details as below table :

• Hydraulic Cutting Device

Stop to cut, Post cut, No Blanking cut

Cutting tool material: Cr12, Heat treatment

Total two sets of cutting blades required

Hydraulic Group, Pump motor =4KW

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 3 units

Packing standard:

Nude cargoes for roll former

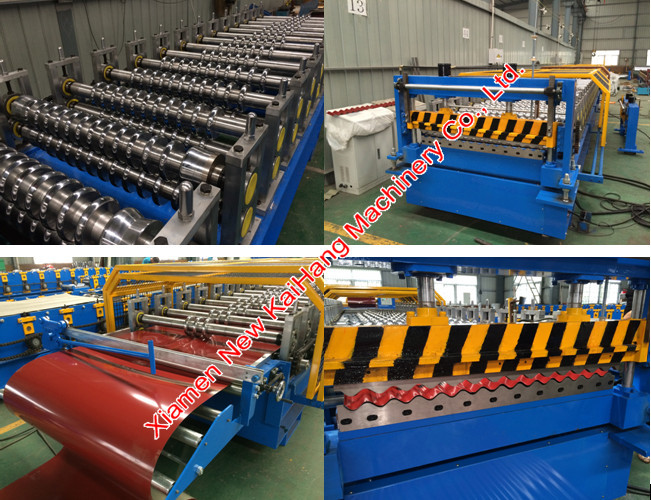

Profile Drawing/Layout/Equipment reference pictures:
