Corrugated sheet roll forming machine, roofing corrugated sheet
cold roll forming machine
Features:
Like another popular metal sheet machine, IBR sheet roll forming
machine, corrugated sheet roll forming machine makes metal roofing and
siding panels from the materials of 0.3-0.8mm thickness and
914-1250mm widths.
Compared to traditional clay tiles, stone or brick cladding,
corrugated sheets give a traditional look, yet weigh lighter and
have longer life circle. In fact, corrugated metal roofing is the
only cladding that should be used in conservation areas.
To sum up, there are regular corrugated sheet roll forming machine
and special usage corrugated sheet machine.
And this profile is also used to as panel for continuous PU line
Quick Detail:
- Thickness : 0.42mm
- Material : G400, pre-painted sheets
- Input width : 1105mm
- Effective width: 990±2mm
- Driven way: by 7.5KW driven motor
- Cutting way: together with continuous PU line
Machine list:
- Entry bench & Manual pre-shearing device
- Roll forming machine
Description/Technical Parameter details of complete line:
- 5TX1250mm Hydraulic Un-Coiler with coil car
NOT included
- Entry Roller & Manual Pre-shearing device (Un-powered)
Smart cut control
To cut off the end of the final piece of sheet only
Working thickness: max. 0.6mm
- Roll forming machine details as below table :
| Suitable roll forming material | Pre-painted coil |
| Thickness | 0.4mm-0.8mm |
| Coil input width | 1105mm |
| Carriage Frame design | Wall-plate-frame-design /New-stand-frame-design |
| Roll forming stages | 20 stages |
| Roller material | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ75mm |
| Main motor power | 7.5Kw with reducer |
| Roll forming speed | 15m/min |
| Electric Voltage Standard | 380V/50Hz/3PH or as requirements |
| Major Color of Machine Painted | RAL 5015(Blue) or as requirements |
NOT included
NOT included
Packing standard:
Nude cargoes for roll former

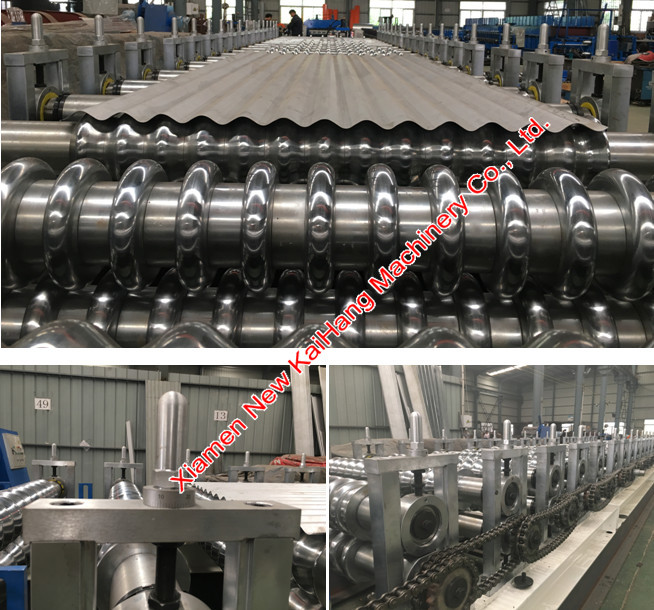

Profile Drawing/Layout/Equipment reference pictures:
