    Roofing U40 Sheet Roll Forming Machine for Flashing Cover Roof panel, Cold roll forming mills

    Ask Lasest Price
    Brand Name : NKH MACHINERY
    Model Number : U40
    Certification : CE/SONCAP/CSA
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10 UNITS/MONTH
    Delivery Time : 40 WORKING DAYS
    • Product Details
    • Company Profile

    Roofing U40 Sheet Roll Forming Machine for Flashing Cover Roof panel, Cold roll forming mills

    Roofing U40 Sheet Roll Forming Machine for Flashing Cover Roof panel, Cold roll forming mills


    1. Technical details of U42 roll forming machine


    Machine Specifications
    Weight
    About 2800kgs
    Dimension
    About 5.9m x 1.2m x 1.8m (length x width x height)
    Color
    Main color: blue
    Suitable Raw Material
    Galvanized Steel Coils
    Thickness of material
    0.6-1.0mm
    Coil width
    116mm
    Yield Strength
    455Mpa
    Main Technical Parameters
    Roller stations
    10 roller stations
    Diameter of shaft
    75mm
    Roll Forming Speed
    25m/min
    Roller material
    No.45 steel, coated with chromed treatment
    Shaft material
    No.45 steel, coated with chromed treatment
    Cutter material
    Cr12 mould steel, with quenched treatment
    Control system
    PLC Siemens brand
    Electric Power requirement
    Motor of roll forming machine: 5.5kw
    Motor of hydraulic cutter: 3kw
    Electric voltage
    According to customer’s requirement

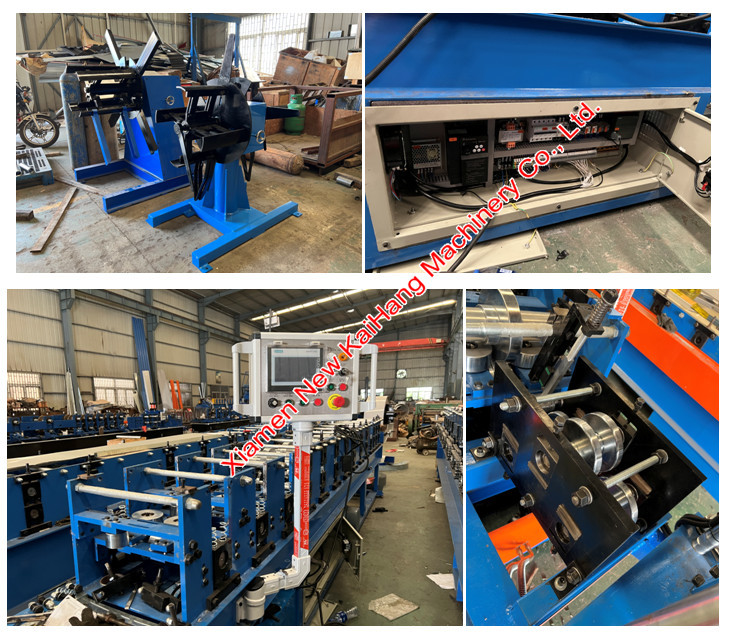

    2. Main components of downspout roll forming machine


    No.NameUnitQty
    1Decoilerset1
    2Entry Beachset1
    3Main Machine for roll formingset1
    4Cutting Systemset1
    5Output Tableset1
    6Control System(PLC)set1
    7hydraulic stationset1

    3. Production Flows


    Uncoiling the sheet---Infeed guiding--Roll forming---Cutting the panel--panels to the supporter
