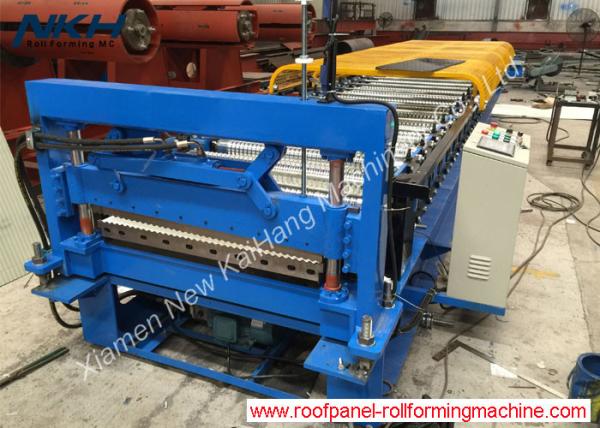

Micro corrugated roll forming machine for galvanized steel corrugated roof panel, 10mm low rib

Quick Detail:

1. Thickness : 0.38-0.5mm
2. Material : G550, pre-painted sheets
3. Input width : 914mm
   1. Effective width: 785+/-6mm
   2. Material weight: 5tons cap.
   3. Coil inner diameter : 508mm
   4. Driven way: by 5.5KW driven motor
   5. Cutting way: by 4kw hydraulic power pack
   6. Cutting tolerance : ±1mm

Application:

Corrugated sheet roll forming machine is a common metal roll forming equipment that produces corrugated metal roofing and siding panels. In our daily life we can see many fans of corrugated metal sheets.

Ade of various metals and alloys steel, corrugated metal sheets has been popular for so many years. The most common materials are pre-painted steel, galvanized steel, Alu-zinc steel, and CR steel. People tend to use the sheets for residential, commercial, industrial as well as agricultural buildings.

Machine list:

1. Hydraulic de-coiler with/without coil cart
2. Roll forming machine
3. Hydraulic cutting device
4. Run out table or automatic stacking device if with high speed
5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons

Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW,

Manual frequency speed control

• Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control

To cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 3 units

Packing standard:

Nude cargoes for roll former

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
