Double rows U/ V panel rolling make machine, galvanized sheets, furring channels/ stud and tracks roll forming

Brief Introduction:

There are two rows rolling tools ( left and right, as Pic2 above) mounted on a twin rows or double rows roll forming machine and each roll forming is separated to each other, so that any break downs, repairs or maintenance on one row of rolling tools will not stop the running and production of the other row of rolling tools. There is only one motor and one driving or primary shaft shared by and connected to the left and right row of roll forming parts.

NOTE: We can design 3-in-1 roll forming machine or 4-in-1 roll forming machine if clients need, however the profiles shall be confirmed by our engineer before a proposal shall be made.

Quick Detail:

1. Thickness : 0.4-0.6mm
2. Material : GI, 550Mpa
3. Input width : 57/33mm
   1. Material weight: 1.5MT cap.
   2. Driven way: by 4Kw driven motor
   3. Cutting way: stop to cut, there is waste after cut-off
   4. Cutting tolerance : ±1mm

Machine list:

1. 1.5MT*300mm manual un-coiler
2. Roll forming machine
3. Hydraulic cutting device
4. Run out table
5. PLC control system

Description/Technical Parameter details of complete line:

• 1.5TX300mm Manual Un-Coiler

Un-powered; Load capacity= MAX.1.5Ton

Coil inner–diameter=410-570mm

Coil Width= MAX.300mm

• Roll forming machine with cutting details as below table :

• PLC Control System

The two profile share in one control system

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter length rolled type

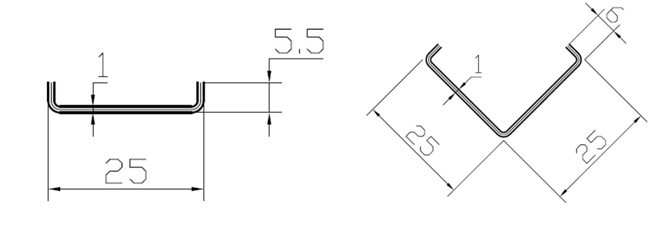

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
