Steel decking roll forming machine, 750mm cover width,
architectural deck steel roll forming machine
Quick Detail:
- Thickness : 0.8-1.2mm
- Material : GI/PPGL
- Coil width : 1250mm
- Effective width: 750±4mm
- Material weight : 5tons, 6tons, 7tons, 8 tons, 10tons
- Coil inner diameter : 510mm+/-+30mm
- Driven way: by driven motor
- Cutting way: by hydraulic group
- Cutting tolerance : ±1mm
Application:
There are many standard metal deck or steel deck profiles that a
steel deck roll forming machine is technically capable to produce,
and these deck sheets are widely used in a variety of applications.
Steel deck roll forming machines have been designed for the
production of various types of metal decks which are usually
applied for roofing and floor industries, and sometimes for bridge
construction as well. The most popular steel decks produced by our
metal deck roll forming machine are currently used in the
industrial applications.
For the roofing decking machine un-coiler, many clients will equip
10 tons capacity and with coil car for heavy weight loading
Machine list:
- 10Tons hydraulic un-coiler with coil car
- Roll former
- Hydraulic cutting device
- Run out rack or automatic stacking device
- PLC control systems
Description/Technical Parameter details of complete line:
- 10TX1250mm Hydraulic de-Coiler with coil car
Expansion system by hydraulic group, Pump motor: 5.5KW
Driven motor to run the coil, Motor: 5.5KW
Inverter brand: TAIWAN Delta brand
Coil Inner-diameter=510+/-30mm
Coil width = Max.1250mm
Taper wedge expand type
Load capacity = Max. 10Tons
Snubber arms on top by pneumatic or hydraulic as per order
The coil car included as standard
- Roll forming machine with cutting details as below table :
| Suitable roll forming material | GI/Alu-Zinc sheets |
| Thickness | 0.8mm-1.2mm/1.5mm |
| Coil input width | 1220mm |
| Carriage Frame design | Wall-plate-frame-design Wall plate thickness 18mm/20mm |
| Roll forming stations | 32 stages |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ95mm |
| Main motor power | 18.5w×2 with reducer or higher |
| Roll forming speed | 12-15 m/min as standard design |
| Hydraulic group power | 7.5Kw |
| Material of cutting blade | Cr12, hear treatment |
| Cutting design | After cut-off, there is waste |
| Electric Voltage Standard | 380V/50Hz/3PH or as per request |
| Major Color of Machine Painted | RAL 5015(Blue) or as requirements |
Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand
Inverter, Omron encoder
Cut-to-length tolerance≤±1mm
Control Voltage 24V
Schneider brand low voltage electric elements
- Product Rack Un-powered, 3 units

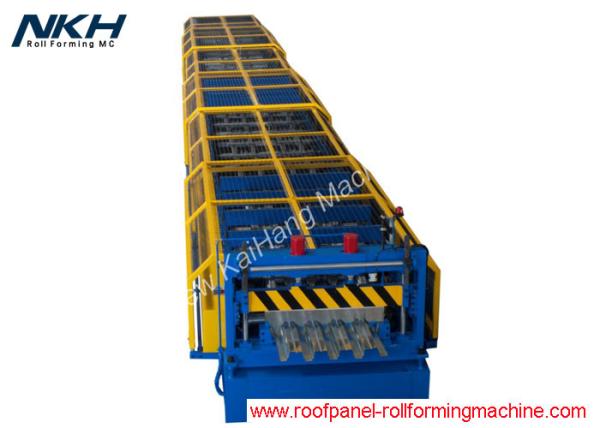

Profile Drawing/Layout/Equipment reference pictures:
