High quantity metal steel sheet decking floor production line, cnc
roll forming machine
Application:
There are different steel deck roll forming machines manufacturing
metal decks for different applications, and the configuration or
components of each machine vary accordingly, for example, some deck
machine have embossing rolling tools while some others do not.
Metal deck roll forming machines have been increasingly popular in
market, and over 90% steel deck roll forming machines buyers
produces metal floor deck and that’s why a deck roll forming
machine is most of time named as metal floor deck roll forming
machine or steel decking floor roll forming machine.
Quick Detail:
- Thickness : 0.8-1.2mm or 0.8-1.5mm
- Material : Galvanized sheets normally, G350-550
- Input width : 1220mm
- Effective width: 990mm
- Material weight : 5tons, 6tons, 7tons, 8 tons, 10tons
- Coil inner diameter : 510mm+/-+30mm
- Driven way: by driven motor
- Cutting way: by hydraulic group
- Cutting tolerance : ±1mm
Machine list:
- 5Tons Hydraulic De-coiler
- Roll forming machine
- Hydraulic cutting device
- Run out table or automatic stacking device
- Siemens PLC and IOP/ touch screen, Schneider brand inverter
Description/Technical Parameter details of complete line:
- 5TX1250mm Hydraulic Un-Coiler with/without coil car
Hydraulic system expand coil inner hole, Pump motor: 3KW
Frequency Inverter to regulate turning speed, Motor: 3KW
Inverter brand: TAIWAN Delta brand
Coil Inner-diameter=510+/-30mm
Coil width = Max.1250mm
Taper wedge expand type
Load capacity = Max. 5Tons
Snubber arms on top by pneumatic or hydraulic as per order
The coil car included or exclude as per order
- Roll forming machine with cutting details as below table :
| Suitable roll forming material | GI/Alu-Zinc sheets |
| Thickness | 0.8mm-1.2mm/1.5mm |
| Coil input width | 1220mm |
| Carriage Frame design | Wall-plate-frame-design Wall plate thickness 18mm |
| Roll forming stations | 24 stages |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ95mm |
| Main motor power | 15Kw*2 with reducer or higher |
| Roll forming speed | 15 m/min as standard design |
| Hydraulic group power | 5.5 Kw |
| Material of cutting blade | Cr12, hear treatment |
| Cutting design | After cut-off, there is waste |
| Electric Voltage Standard | 415V/50Hz/3PH or as per request |
| Major Color of Machine Painted | RAL 5015(Blue) or as requirements |
Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand
Inverter, Omron encoder
Cut-to-length tolerance≤±1mm
Control Voltage 24V
- Product Rack Un-powered, 3 units

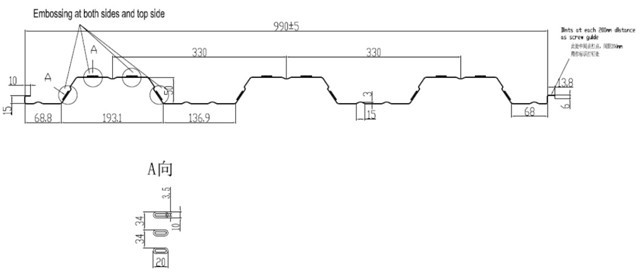

Profile Drawing/Layout/Equipment reference pictures:
