Indonesia popular roofing roll forming mc, pre – painted sheets,
0.42mm, steel roof roll forming machine
Features:
Metal sheet roll formers are widely used to produce mainly metal
roofing and wall cladding sheets, and the most popular metal sheet
roll forming machines in the markets can be found here.
A metal sheet roll forming machine is designed to produce roof
panels, roofing step tiles and wall cladding sheets with different
models, like IBR roofing sheets, corrugated roofing sheets,
trapezoidal roof panels, IDT roofing sheets, Russian type 1100
metal step tiles, klip-lok 406 and klip-lok 700, KR18/KR24 standing
seam roofing, BEMO roof sheets, and concealed fixing roofing sheets
etc.
Quick Detail:
- Thickness : 0.42mm-0.6mm
- Material : pre-painted roofing sheets, 550Mpa
- Input width : 1220mm
- Effective width: 1037mm
- Material weight : 5MT or as per request
- Coil inner diameter : 510mm
- Cutting way: by hydraulic group
- Cutting tolerance : ±1mm
Machine list:
- Hydraulic un-coiler for 5MT capacity
- Normal speed roll former
- Hydraulic cutting device
- Rolled run out rack
- PLC control system
Description/Technical Parameter details of complete line:
- 5TX1250mm hydraulic de-coiler with/without coil car
You can adapt to hydraulic un-coiler or manual one as per request
Coil ID: 510+/-30mm
Coil weight: 5MT
Coil OD: 1700mm
3KW driven motor with gear box
3KW hydraulic group to expand the palms
- Entry Roller & Manual Pre-shearing device (Un-powered)
To cut off the end of the first piece of sheet only
Cutting thickness: max. 0.8mm
- Roll forming machine with cutting details as below table :
| Suitable roll forming material | Pre-painted Sheets,550Mpa |
| Thickness range | 0.42mm-0.6mm |
| Coil width | 1220mm |
| Carriage Frame design | Heavy duty wall-plate-frame-design |
| Roll forming stations | 24 stations |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated |
| Shafts Diameter | Φ95mm |
| Main motor power | 11Kw driven motor with gear box |
| Line speed of roll former | 15m/min (Higher speed is available, depends on the specification
required by the buyer) |
| Hydraulic group power | 4.0Kw and without waste cut |
| Material of cutting blade | Cr12, hear treatment as normal design |
| Electric Voltage Standard | 220V/60Hz/3Ph or as the customer's requirements |
| Major Color of Machine Painted | RAL 5015(Blue) or as per customer’s requirements |
Schneider/ Shihlin/ Delta brand Inverter
Siemens brand PLC/touch screen,
Omron brand encoder
Cut-to-length tolerance≤±1mm
Hydraulic valve voltage 24V
- Run out table Un-powered, 3 units

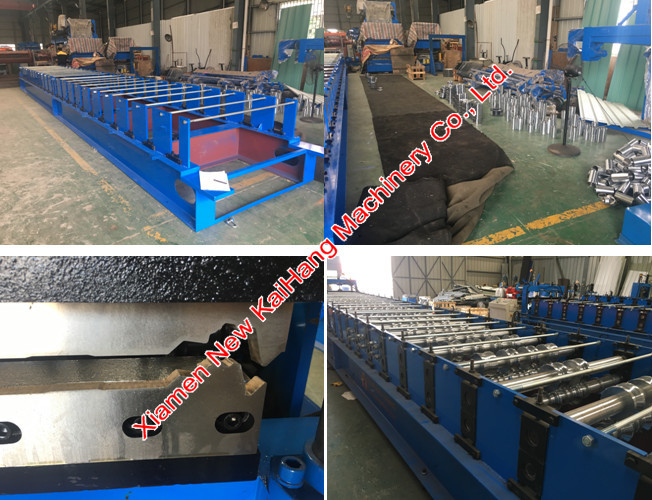

Profile Drawing/Layout/Equipment reference pictures:
