Metal roofing/ wall profile forming mc, Vietnam standard type, T18
roofing machine
Quick Detail:
- Thickness : 0.42mm-0.6mm
- Material : Pre-painted Coil, 345Mpa
- Input width : 1000mm
- Effective width: 985mm
- Material weight : 5MT or as per request
- Coil inner diameter : 510mm
- Cutting way: by hydraulic group, no waste cut
- Cutting tolerance : ±1mm
Description/Technical Parameter details of complete line:
- 5TX1250mm hydraulic de-coiler with/without coil car
Hydraulic system to expand coil inner hole, pump motor: 3KW
Coil OD= 510±30mm
Coil capacity: Max. 5Tons
Coil width Max. 1250mm
Taper wedge expand type
Driving motor to turn the coil, 3KW
- Entry Roller & Manual Pre-shearing device (Un-powered)
To cut off the end of the final piece of sheet only
Working thickness: max. 0.6mm
- Roll forming machine with cutting details as below table :
| Suitable roll forming material | Pre-painted Sheets, 245-550Mpa |
| Thickness range | 0.42mm-0.6mm |
| Coil width | 1250mm |
| Carriage Frame design | Wall-plate-frame-design /New-stand-frame-design |
| Roll forming stages | 6+1 stages Including one stage for embossing |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated Option : with roller heat treatment |
| Shafts Diameter | Φ75mm |
| Main motor power | 5.5Kw with reducer |
| Rolling speed of roll former | 18m/min (Higher speed is available, depends on the specification
required by the buyer) |
| Hydraulic group power | 3.0 Kw |
| Material of cutting blade | Cr12, hear treatment as normal design |
| Electric Voltage Standard | 415V/50Hz/3Ph or as the customer's requirements |
| Major Color of Machine Painted | RAL 5015(Blue) or as per customer’s requirements |
Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand
Inverter, Omron encoder
Cut-to-length tolerance≤±1mm
Control Voltage 24V
- Product Rack Un-powered, 3 units
Machine list:
- Hydraulic un-coiler with/without coil cart
- Normal speed roll former
- Hydraulic cutting device
- Run out table or automatic stacking device for quick packing
- Siemens PLC and touch screen, Schneider brand inverter
Features:
A trapezoidal roof panel roll forming machine is always adjustable
for different feeding widths. You can make trapezoidal roof panels
with different effective widths from different-width materials.

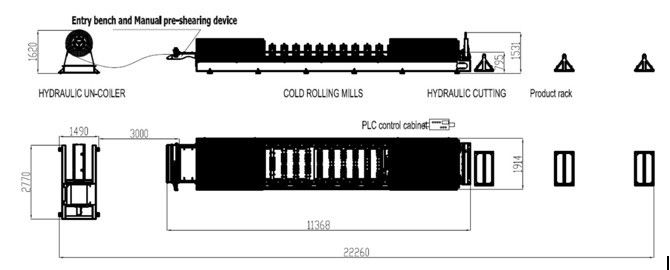

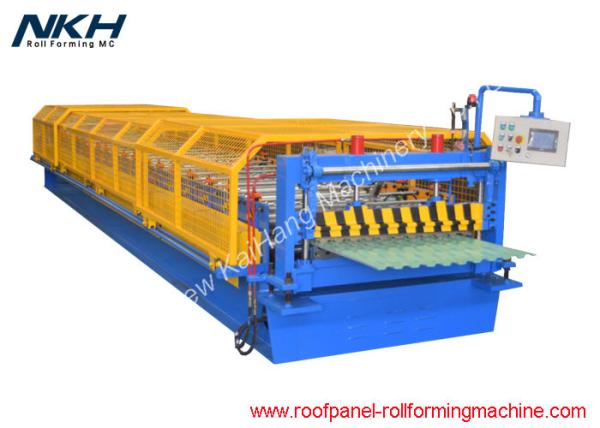

Profile Drawing/Layout/Equipment reference pictures:
