Seam lock roll forming machine, 40-430 type, and classic design

Quick Detail:

1. Thickness : 0.6-1.0mm

2. Material : GI/Alu-zinc/ Aluminum/PPGL

3. Input width :610mm

4. Effective width: 430mm

5. Material weight : 3T/5T

6. Coil ID : 508+/-30 mm

7. Driven way: by 11Kw driven motor

8. Cutting way: by 4.0Kw hydraulic cutting device

9. Cutting tolerance : ±1mm

Features:

Standing Seam Metal Roofing is a fully interlocking roof system. Its unique design mechanical-lock design forms a weather-tight unit, and unlike some other types of panel metal roofs, no rivets or screws are exposed on the surface of the panels. It may be installed on new construction or applied over existing roofs. All trims and caps are designed to ensure an integrated weather-proof roof.

Compared to a regular roof panel roll forming machine, this standing seam roll former has smaller sizes in body but more sophisticated rolling tools. As a result, some standing seam roll forming machine might be longer and costs much higher.

Machine list:

1. 3T*600mm hydraulic un-coiler

2. Roll forming machine

3. Hydraulic cutting device

4. Run out table

5. PLC control systems

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic Un-Coiler

Expansion system controlled by hydraulic group

Load capacity=3 Ton

Coiler Width=Max. 600 mm

• Polythene film on device before feed in

• Entry Roller & Manual Pre-shearing device

Smart cut control

To cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter long, rolled type

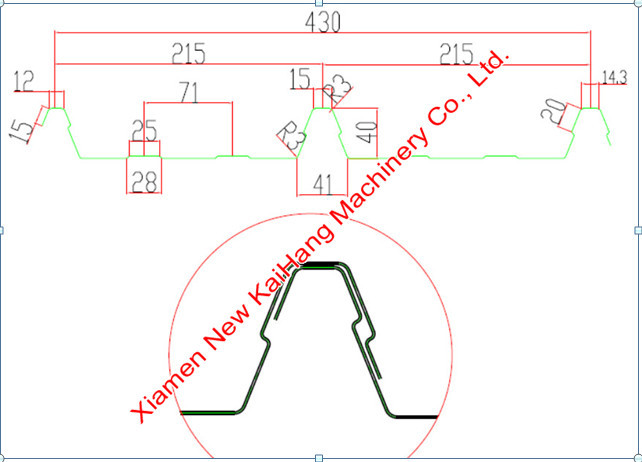

Profile Drawing/Layout/Equipment reference pictures:
