Seam lock roll forming machine, 820 type

Quick Detail:

1. Thickness : 0.4-0.8mm
2. Material : Pre-painted Coil
3. Input width :1000mm
4. Effective width: 820mm
5. Material weight : 5T
6. Coil ID : 508+/-30 mm
7. Driven way: by 7.5Kw driven motor
8. Cutting way: by 4.0Kw hydraulic cutting device
9. Cutting tolerance : ±1mm

Features:

In Chinese markets, customers can usually find 470 and 820 type concealed fixing standing seam roll forming machine, while in North American market, particularly in Mexican market, people like to give them the name LR18/KR 18 or LR24/KR24 standing seam roll forming machine for roofing sheets. In addition, the most popular standing seam roll forming machine is 610 joint-hidden or fasterner-hidden standing seam roof panels.

There are also other similiar concealed fixing systems with clips. For example, KLIP-LOK® 406 roof and KLIP-LOK® 700 roof developed by LYSAGHT; CLIP-LOCK™ roof system by TAYLOR METAL; and clicklock standing seam roof system in some area etc! The machines accordingly has some popular names, like KLIP-LOK® roofing sheet roll forming machine (for KLIP-LOK® 406 or Klip-lok® 700 roof sheets.

Machine list:

1. 5T*1250mm hydraulic un-coiler
2. Roll forming machine
3. Hydraulic cutting device
4. Run out table
5. PLC control systems

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW, manual frequency speed control

Other design such as snubber arm /support arm/coil car as per request

• Entry Roller & Manual Pre-shearing device

Smart cut control

To cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter long, rolled type

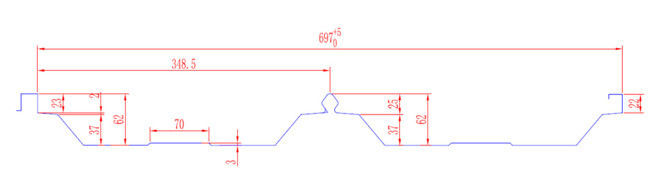

Profile Drawing/Layout/Equipment reference pictures:
