Roll forming machine for seam lock panel with concealed fixing with glue machine

Application:

There are also other similar concealed fixing systems with clips. For example, KLIP-LOK® 406 roof and KLIP-LOK® 700 roof developed by LYSAGHT; CLIP-LOCK™ roof system by TAYLOR METAL; and clicklock standing seam roof system in some area etc! The machines accordingly have some popular names, like KLIP-LOK® roofing sheet roll forming machine (for KLIP-LOK® 406 or Klip-lok® 700 roof sheets.

Compared to a regular roof panel roll forming machine, this standing seam roll former has smaller sizes in body but more sophisticated rolling tools. As a result, some standing seam roll forming machine might be longer and costs much higher.

Quick Detail:

1. Thickness : 0.4-0.8mm
2. Material : GI/Alu-zinc/ Aluminum/PPGL
3. Input width : 600mm
4. Effective width: 478mm
5. Material weight : 3MT
6. Coil ID : 510mm
7. Driven way: by 7.5Kw driven motor
8. Cutting way: by 4.0Kw hydraulic cutting device
9. Cutting tolerance : ±1mm

Machine list:

1. 3T*600mm hydraulic un-coiler
2. Polythene film device as request
3. Roll former
4. Hydraulic cutting device
5. Run out table
6. PLC control systems

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic Un-Coiler

Expansion system controlled by hydraulic group

Link-connect expanding system

Pump power=1.5KW

Load capacity=3 Ton

Coil Inner–diameter =451-530 mm

Coil outer-diameter=Max.1500 mm

Coiler Width=Max. 600 mm

• Polythene film on device before feed in
• Entry Roller & Manual Pre-shearing device

Smart cut control

To cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter long, rolled type

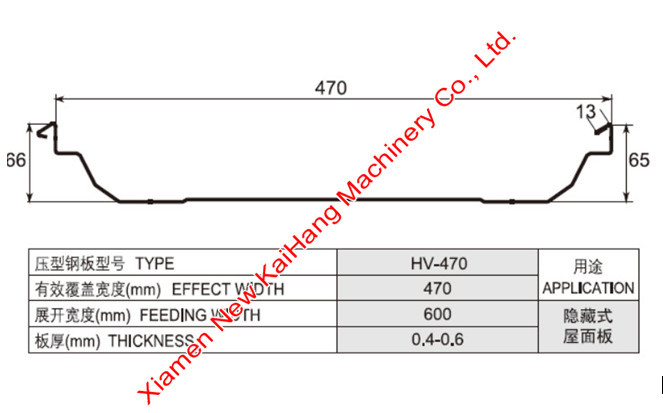

Profile Drawing/Layout/Equipment reference pictures:
