    Durable Standing Seam Roll Forming Machine , Roof Panel Roll Forming Machine

    Ask Lasest Price
    Brand Name : NKH MACHINERY
    Model Number : YX67-375
    Certification : CE/SONCAP/CSA
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10 UNITS/MONTH
    Delivery Time : 40 WORKING DAYS
    • Product Details
    • Company Profile

    Durable Standing Seam Roll Forming Machine , Roof Panel Roll Forming Machine

    Standing seam roof panel roll forming machine in 20 FT container


    Brief Introduction standing seam roof sheet roll forming machine:


    There are standard standing seam roof panels such as 50-333, 50-429, 65-305, 65-333, 65-400, 65-459 and 65-500, and these profiles can be straight sheet, or tapered sheets. Like other concealed fixing standing seam roofing sheet roll forming machine, standing seam sheet roll forming machine can also handle with different widths material and manufacture different standing seam sheets on the same machine, like one machine can make both 65-400 and 65-450 type roof panels which joint with each other through clips too.

    The profile is normally very long length and produce at site, so this standing seam machine is also designed/ fixed in 20FT container for easy transportation


    Quick Detail:

    1. Thickness : 0.7-1.0mm
    2. Material : aluminum, steel
    3. Input width : 560mm
    4. Effective width: 375±3mm
    5. Material weight : 5MT
    6. Coil inner diameter : 508mm
    7. Driven way: by driven motor
    8. Cutting way: by hydraulic power pack
    9. Cutting tolerance : ±1mm

    Machine list:

    1. 5T*600mm manual un-coiler
    2. Roll former
    3. Hydraulic cutter
    4. Run out rack
    5. PLC control cabinet

    Description/Technical Parameter details of complete line:

    • 5TX600mm manual rack for easy transportation
    • Polythene film on device before feed in
    • Roll forming machine with cutting details as below table :
    Suitable roll forming materialAluminum sheets
    Thickness0.6-1.0mm
    Coil input widthApprox. 600mm
    Carriage Frame designWall-plate-frame-design with18mm wall thickness
    Roll forming stages13 stages
    Roller material45# steel, CNC lathes, Hard chrome coated
    Shafts DiameterΦ75mm
    Main motor power5.5Kw with reducer
    Line speed of roll former15m/min
    Hydraulic group power3.0 Kw
    Cutting wayBy hydraulic group
    Electric Voltage Standard380V/50Hz/3Ph or as requirements
    Machine Color PaintedRAL 5015(Blue) or as requirements
    • PLC Control System

    Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

    Cut-to-length tolerance≤±1mm

    Control Voltage 24V

    • Product Rack Un-powered, 3 units

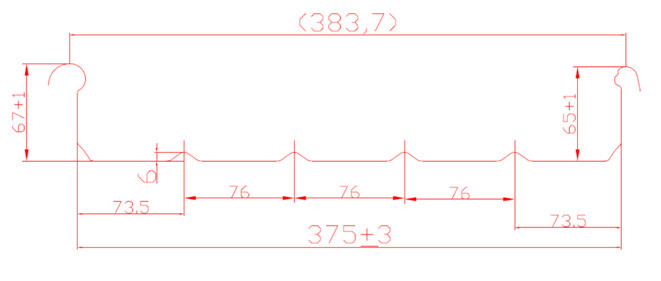

    Profile Drawing/Layout/Equipment reference pictures:


    Durable Standing Seam Roll Forming Machine , Roof Panel Roll Forming Machine

    Durable Standing Seam Roll Forming Machine , Roof Panel Roll Forming Machine
