India standard roof profile roll forming machine, 1000mm cover width for roof profiling machine

Quick Detail:

1. Thickness : 0.4-0.8mm
2. Material : G550, pre-painted sheets
3. Input width : 1219mm
4. Coil ID: 508mm
   1. Effective width:1000+/-4mm
   2. Material weight: 5Tons cap.
   3. Driven motor: by 7.5Kw or 11kw motor with gear box or higher
   4. Cutter Material: Cr12, heat treatment

Brief Introduction:

Metal sheet roll formers are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here.

The 30-200-1000 type of roofing panel is used widely in market as very old and classic design of the roofing system

Machine list:

1. 5T*1250mm hydraulic de-coiler as standard design
2. Roll former
3. Hydraulic cutter
4. Run out rack or 8 meter pneumatic stacker for high speed
5. PLC control system

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with/without coil car

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW,

Delta/Schneider brand inverter

Other design such as snubber arm /support arm/coil car as per request

• Entry bench & Manual Pre-shearing device

to cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Cut to length control

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Schneider brand low voltage electric elements

• Product Rack rolled type normally

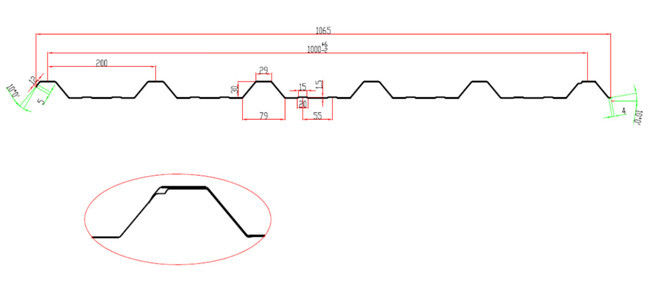

Profile Drawing/Layout/Equipment reference pictures:
