Malaysia standard 760 roofing panel rolling machine, 0.18mm thick, PPGL

Features:

YX23-190-760 profile machine is very popular in South Asia, such as in Malaysia, Myanmar, Indonesia with thin and full hard material with high speed requirement too

Quick Detail:

1. Thickness : 0.18-0.3mm
2. Material : G550, GGPI, PPGL
3. Input width : 914mm
   1. Effective width: 760+/-4mm
   2. Material weight: 5MT cap.
   3. Coil inner diameter : 510+/-30mm
   4. Driven way: by 5.5kw motor with gear box
   5. Cutting Material: Cr12, heat treatment
   6. Cutting tolerance : ±1mm

Machine list:

1. Hydraulic or manual un-coiler as request
2. Roll former with tooling rollers
3. Hydraulic cutting device
4. Run out table or automatic stacking device
5. PLC control systems

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with coil car

Please refer to the item for details

• Entry Roller & Manual Pre-shearing device (Un-powered)

Smart cut control, to cut off the end of the final piece of sheet only

Working thickness: max. 0.6mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Cut to length control

The precision controlled by Omron encoder and counting wheels

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Can show interface language as request

• Product Rack rolled type normally can also be stacker

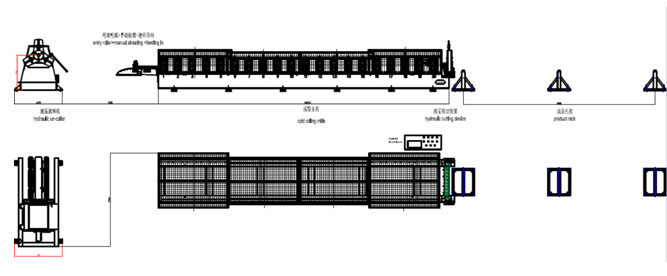

Profile Drawing/Layout/Equipment reference pictures:
