Philippines popular metal roof cold rolled making machine, metal
roofing roll forming machine
Quick Detail:
- Thickness : 0.4mm-0.8mm
- Material : Full hard PPGI material
- Input width : 1220mm
- Effective width: 750/1030+/-4mm
- Material weight : 5MT or customized
- Coil inner diameter : 510mm
- Roller material: 45#, CNC laths, hard chrome coated
- Cut to length tolerance : ±1mm
Description/Technical Parameter details of complete line:
- 5TX1250mm hydraulic de-coiler with/without coil car
Hydraulic system to expand coil inner hole, pump motor: 3KW
Coil OD= 510±30mm
Coil capacity: Max. 5Tons
Coil width Max. 1250mm
Taper wedge expand type
Driving motor to turn the coil, 3KW
- Entry Roller & Manual Pre-shearing device (Un-powered)
To cut off the end of the first or final piece of sheet only
Cutting thickness: max. 0.8mm
- Roll forming machine with cutting details as below table :
| Production material | Pre-painted Sheets,G550 |
| Thickness range | 0.4mm-0.8mm |
| Coil width | 1220mm |
| Carriage Frame design | Classic wall-plate-frame-design, 18mm wall plate thickness |
| Roll forming stages | 20 stages |
| Material of forming roller | 45# steel, CNC lathes, Hard Chrome Coated or with roller heat
treatment as option |
| Shafts Diameter | Φ75mm/95mm |
| Main motor power | 7.5Kw driven motor with gear box Or higher motor power for high speed |
| Line speed of roll former | 15-18m/min |
| Hydraulic group power | 4.0Kw |
| Material of cutter | Cr12, hear treatment as normal design |
| Electric Voltage Standard | 220V/60Hz/3Ph or as the customer's requirements |
| Major Color of Machine Painted | RAL 5015(Blue) or as per customer’s requirements |
Siemens brand PLC/touch screen, Schneider/ Shihlin/ Delta brand
Inverter, Omron brand encoder
Cut-to-length tolerance≤±1mm
Control Voltage 24V
- Run out table rolled type, 3 units
Machine list:
- Hydraulic un-coiler with 5Tons capacity
- Normal speed roll former
- Hydraulic cutting device
- Run out table
- PLC control systems
Features:
This metal sheet roll forming machine produces trapezoidal sheets from color pre-painted steel coils,
Galvanized steel coils, alu-zinc sheets, and sometimes aluminum
steel coils (aluminum roof panels are preferred in Nigeria)

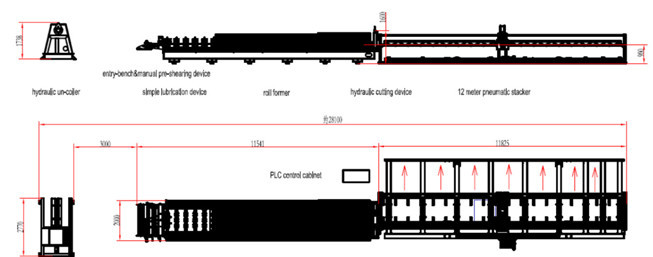

Profile Drawing/Layout/Equipment reference pictures:
