Boxbeam panel forming machine, cold rolled, galvanized steel

Quick Detail:

1. Thickness : 1.5mm-2.0mm
2. Material : Galvanized sheets
3. Material weight : 5Mt
4. Coil inner diameter : 510mm
5. Driven way: by 11kw driven motor
6. Cutting way: by hydraulic power pack
7. Cutting tolerance : ±1mm

Application:

The box beam as main part together with upright, Uni, L slot and box panel is the complete shelves systems

The difference between C and beam is that the beam is two C section joint together

So, there are two parts for the roll former, one is to form 95% shape C section and 3 stages of roll former to joint them together to make the box beam

Machine list:

1. Hydraulic De-coiler or Manual Un-coiler rack
2. Pre-leveling device
3. Roll forming machine 1
4. Hydraulic Post- cut device
5. Run out table
6. PLC control systems
7. Roll forming machine 2 to joint the C section

Description/Technical Parameter details of complete line:

• 5TX600mm Hydraulic Un-coiler or manual de-coiler

Un-powered; Load capacity= MAX.5Ton

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil inner–diameter=510+/-30mm

Coil Width= MAX.600mm

Mandrel rotation: Draft type

• Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

• Roll forming machine with cutting details as below table :

• PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

• Product Rack 4 meter long ,rolled type

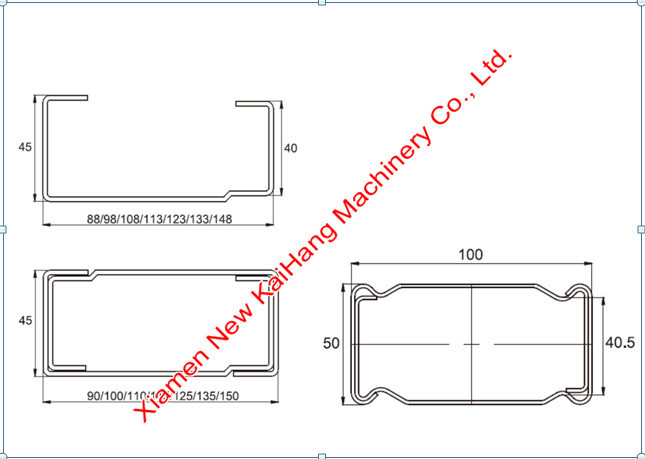

Profile Drawing/Layout/Equipment reference pictures:
