10 tons hydraulic de – coiler, 1250mm coil width, tapered wedge design, with support/ snubber arms

Quick Detail:

1. Thickness : 0.4mm-0.8mm/0.8mm-1.2mm
2. Material : Pre-painted Coil, full hard or soft yield strength
3. Input width: 1250mm
4. Material weight: Max. 10MT

Description/Technical Parameter details of the de-coiler

Taiwan famous Delta brand inverter

Hydraulic system to expand coil inner hole, Pump motor: 5.5KW

Taper wedge expand type

Double level expanding palms with two coils bore variations of 480-530 for Palm 1 and 580-630 for Palm 2

Load Capacity: Max. 10Tons

Coil Width Max. 1250mm

Coil Outer-diameter Max. 1500mm

Retarding Motor to turn the coil, Motor: 5.5KW

Self–centering device

There is slippage guiding equipped on the base frame. There is a hydraulic oil cylinder on the base to drive the un-coiler to make correction when the shaft-line is off-position with the forming machine, to make sure the generatrix of the coil consistent with the forming machine.

Maintain arm on the top, to avoid coil become loose when stop to be packed.

The arm to be driven by pneumatic cylinder, manual control

The air supplier should be provide by the user

With 10 tons coil car

Up/down stroke of coil car: Max. 450mm

Forward/backward stroke of coil car: Max. 2000mm

Application:

Based on different capacities, we provide 5ton hydraulic un-coiler, 8ton hydraulic de-coiler, 10ton hydraulic de-coiler, 12ton hydraulic de-coiler and 15 ton hydraulic de-coiler. Usually there is a coil car equipped for hydraulic de-coiler over 5ton capacity. The extra cars can move horizontally and also lift up and down to transport and get the coils inserted in the center by the arm of the hydraulic de-coiler.

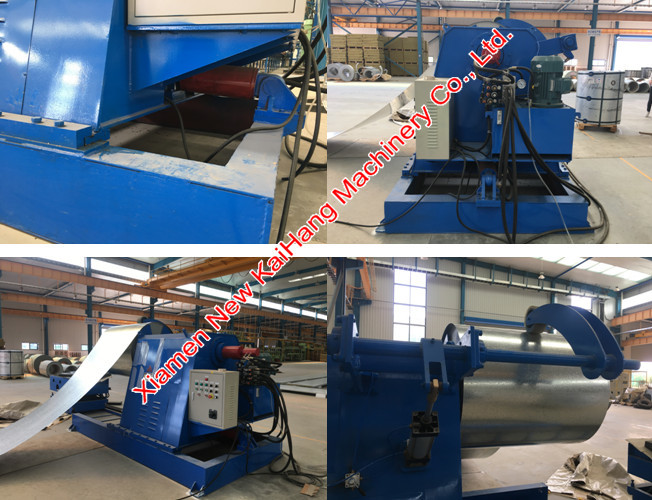

Profile Drawing/Layout/Equipment reference pictures:
