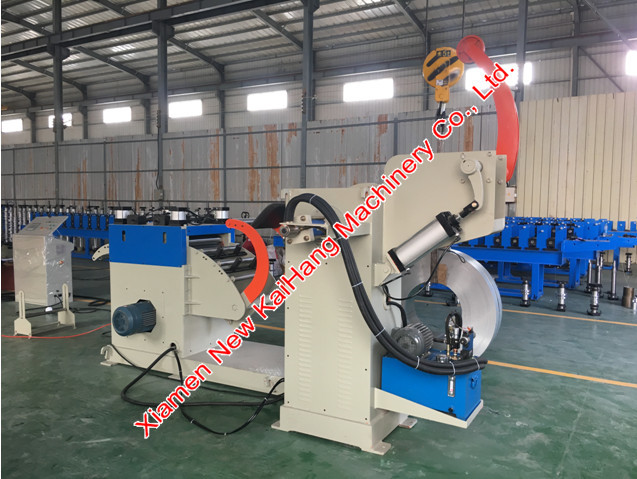

Un-winder with hydraulic pack for upright/ heavy gauge box beam/ presser, 3MT capacity, 2 in 1 un-coiler

Application:

Heave gauge driven de-coiler with straightening or leveling is working with the presser and different roll former such as upright, slot angle, beam, highway guardrail profile, box panel with fast speed for efficient production

Quick Detail:

1. Thickness : 2.0-2.5mm
2. Material : GI,PPGI, 345Mpa
3. Input width : < 400mm
4. Material weight : 3MT
5. Rotation way: by driven motor
6. Coil inner diameter : 470-510mm

Description/Technical Parameter details of the de-coiler

Coil inner hole expand by manual, four palms

Motorized driving coil rotation, auto stop/start control

Load capacity=2Ton

Coil Inner – diameter: 450-530 mm

Coil outer-diameter=Max.1200 mm

Coiler Width=Max. 300 mm

Pre-straighten device share in the same driving motor of un-coiler

7 shafts for straightening the sheet

Solid shaft, made from GCr15, hart chrome-coated

Features:

The de-coiler is touch the roll former speed by limit switch

To start/stop automatically

Suit with 15-18 mpm roll former

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
