Hydraulic de-coiler with coil car for 1500mm wide coil width roofing/ deck machine/ cut to length line, 10mt capacity

Application:

There are different de-coilers or un-coilers according to driven solutions, for example, manual de-coiler with no power, electrical de-coiler with an electric motor and hydraulic un-coiler with an electric motor and hydraulic oil pump. We normally provide hydraulic de-coilers as standard, while can also provide manual one as spare for some special solutions

This un-coiler is for 1500mm input wide coil width roofing machine or decking machine such as bridge deck roofing machine or slitting cut to length line

Quick Detail:

1. Thickness : 0.8mm-1.2mm
2. Material : GGPI/PPGL, G345
3. Input width: 1500mm
4. Material weight: Max. 10MT

Description/Technical Parameter details of the de-coiler

Taiwan famous Delta brand inverter

Hydraulic system to expand coil inner hole；Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Coil Outer-diameter Max.1500mm

Taper wedge expand type

Load Capacity: Max. 10 Tons

Coil Width Max. 1500mm

Manual support arm at the end of the main mandrel

Driving motor with gear box to turn the coil, 5.5KW

manual frequency speed control

The rotation speed to be suitable for the roll former with max. line speed 25mpm

Hydraulic top arms to press the coils and keep the coil tight

10 tons capacity coil car:

Up/down stroke of coil car: Max. 450mm

Forward/backward stroke of coil car: Max. 2000mm

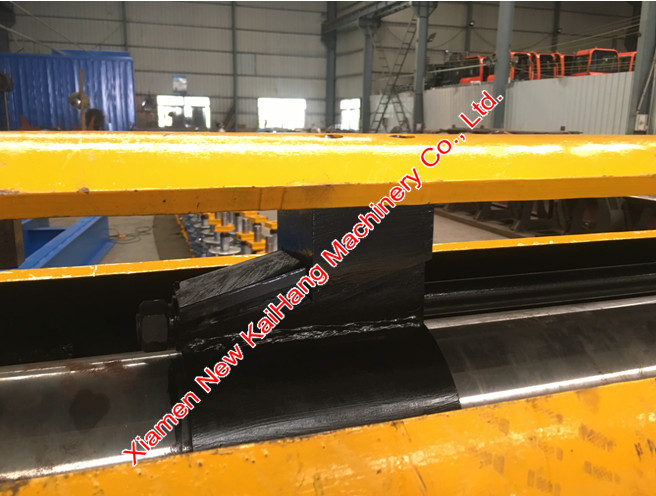

Profile Drawing/Layout/Equipment reference pictures:
