6TX1250mm de – coiler with coil car for high speed roofing/ wall cladding making machine, high speed rotation

Quick Detail:

1. Thickness : 0.4mm-0.8mm
2. Material : GI, PPGL, 550-750Mpa
3. Input width: Max. 1250mm
4. Material weight: Max. 6MT

Description/Technical Parameter details of the de-coiler

Two hydraulic cylinders to lift up/down, forward/reverse

Up/Down stroke of Coil Car: Max. 300mm

Forward/Back stroke of the Coil Car: Max. 2000mm

Hydraulic system expand coil inner hole, Pump motor: 3KW

Frequency Inverter to regulate turning speed, Motor: 7.5KW

TAIWAN Delta brand inverter

Complete thickness of the carriage plate : 20mm

Diameter of the shaft :220mm

To suit with Max. line speed of roll former 40mpm

Taper wedge expand type

Coil Inner-diameter=510+/-30mm

Coil width = Max.1250mm

Load capacity = Max. 6Tons

Application:

A hydraulic un-coiler with coil cart is always supplied to work with high-speed roll forming machines, high-speed slitting and cut-to-length line, and heavy-duty metal sheet embossing machine lines for high cap. production.

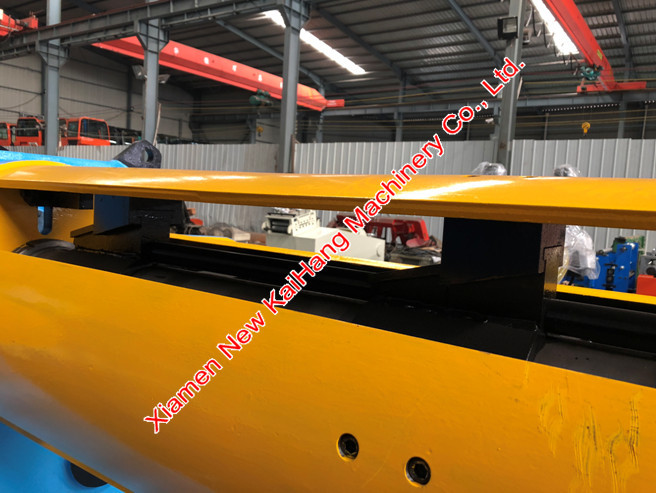

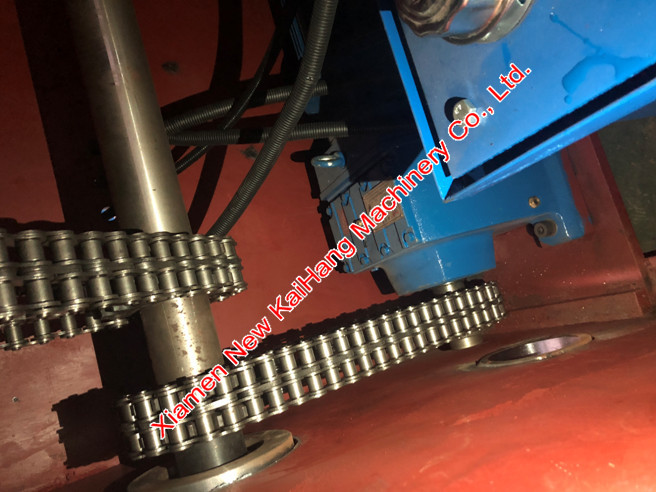

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
