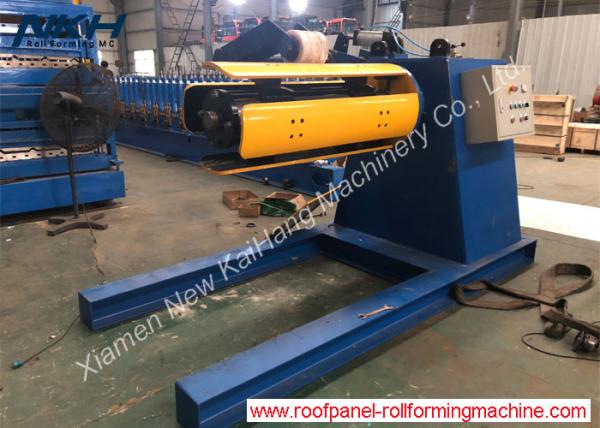

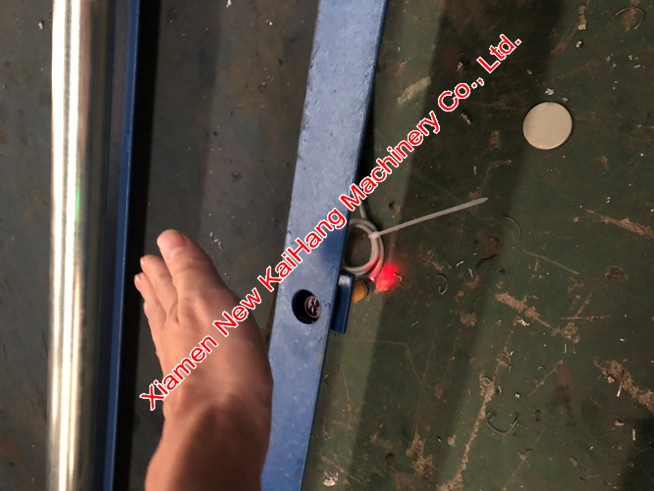

Hydraulic un – coiler for light gauge roofing/ corrugated panel making machine

Application:

A hydraulic de-coiler is equipment for unrolling the steel coils and always works for light gauge roofing/corrugated panel roll forming machine

Quick Detail:

1. Thickness : 0.4mm-0.8mm
2. Material : Galvanized Sheets, PPGL, G300-G550
3. Input width: Max. 1250mm
4. Material weight: Max. 5MT
5. Rotation way: by driven motor

Description/Technical Parameter details of the de-coiler

Hydraulic system expand coil inner hole, Pump motor: 3KW

Frequency Inverter to regulate turning speed, Motor: 3KW

Inverter brand: TAIWAN Delta brand

Taper wedge expand type

Coil Inner-diameter=510+/-30mm

The main core shaft rotated by the back rotating cylinder for the synchronism to avoid the oil leakage

The main core shaft diameter: 203mm

Double row chain connect the shaft and the motor with gear box and there is one support plate fixed on the base frame /on the side of the gear box to make the running stable and avoid the gear box easy damage

Four complete steel plate (18mm) design to make the carriage stronger

Coil width = Max.1250mm

Load capacity = Max. 5Tons

Pneumatic top arms to press the sheets when start/stop the rotation of the coil
