De - coiler for ceiling/ flashing, twin head design, 300mm input width, grey color

Quick Detail:

1. Thickness : 0.4mm-0.8mm, 0.8-1.2mm
2. Material : GI,PPGI
3. Input width : < 300mm
4. Material weight : 1.5MT
5. Coil inner diameter : 470-510mm

Application:

A de-coiler is equipment for unrolling the steel coils and always works for roll forming machine, sandwich panel production line, slitting and cut to length line, and embossing machine line etc.

1.5Tons manual twin head de-coiler normally used for trim flashing, ridge cap, roof batten roll forming production line

Twins head design can save the un-loading/ loading time of the coil to improve the production effectively

Description/Technical Parameter details of the de-coiler

Manual type design

Twins head

Drag off by roll former

Load capacity= MAX.1.5Ton per coil

Coil inner–diameter=400-580mm or as per request

Link-connect expanding system

Coil Width= Max.300mm

Features:

Drag off by roll former with 12-15mpm forming speed

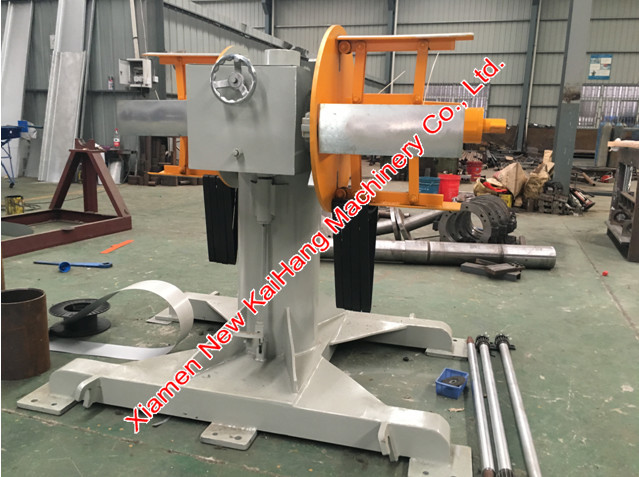

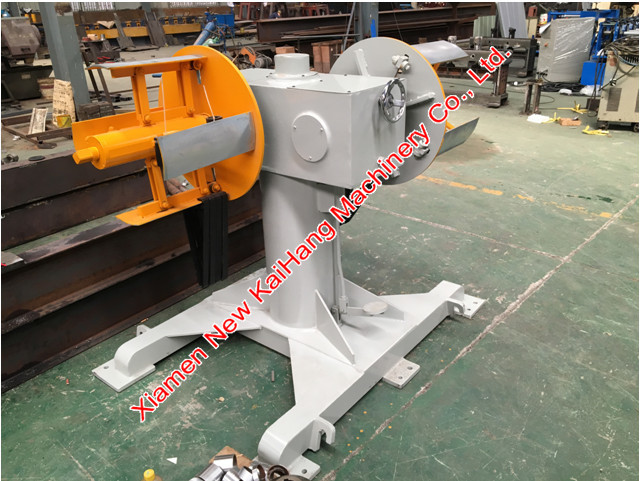

Profile Drawing/Layout/Equipment reference pictures:
