European high rib decking machine, steel floor decking machine

Application:

Steel roof deck: The steel roof decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings;
Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.
Metal form deck: Metal form decks are produced and used extensively also in floor construction as a permenant steel base for poured reinforced concrete floor slabs.
Architectural deck: This kind of steel deck offers architects and engineers the ability to creat amazing designing for striking and spacious interiors, as well as dramatic and high-performing exteriors.
Bridge deck: Where a bridge has main beams installed at suitable centres, steel decking may be placed across the beams without additional supports, suitable for new construction and bridge rehabilitation.

For the roofing decking machine un-coiler, many clients will equip 10 tons capacity and with coil car for heavy weight loading

Quick Detail:

1. Thickness : 0.8-1.2mm
2. Material : GI/PPGL
3. Coil width : 1500mm
4. Effective width: 840 mm
5. Material weight : 8 tons, 10tons
6. Coil inner diameter : 508mm
7. Driven way: by driven motor
8. Cutting way: by hydraulic group
9. Cutting tolerance : ±1mm

Machine list:

1. 10Tons*1500mm hydraulic un-coiler with coil car
2. Roll forming machine with tools
3. Hydraulic cutting device
4. Run out rack or automatic stacking device
5. PLC control systems

Description/Technical Parameter details of complete line:

• 10TX1500mm Hydraulic de-Coiler with coil car

Expansion system by hydraulic group, Pump motor: 7.5KW

Driven motor to run the coil, Motor: 7.5KW

Inverter brand: TAIWAN Delta brand

Coil Inner-diameter=510+/-30mm

Coil width = Max.1500mm

Taper wedge expand type

Load capacity = Max. 10Tons

Snubber arms on top by pneumatic or hydraulic as per order

The coil car included as standard

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

Schneider brand low voltage electric elements

• Product Rack Un-powered, 3 units

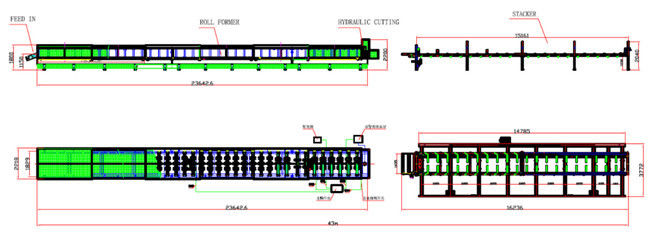

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
