European 137 high rib decking machine/ roll forming mc/ roll forming line for bridge deck panel

Quick Detail:

1. Thickness : 0.8-1.2mm

2. Material : GI/PPGL

3. Coil width : 1500mm

4. Effective width: 930 mm

5. Material weight : 8 tons, 10tons

6. Coil inner diameter : 508mm

7. Driven way: by driven motor

8. Cutting way: by hydraulic group

9. Cutting tolerance : ±1mm

Machine list:

1. 10Tons*1500mm hydraulic un-coiler with coil car

2. Roll forming machine with tools

3. Hydraulic cutting device

4. Run out rack or automatic stacking device

5. PLC control systems

Application:

There are many standard metal deck or steel deck profiles that a steel deck roll forming machine is technically capable to produce, and these deck sheets are widely used in a variety of applications.

Steel deck roll forming machines have been designed for the production of various types of metal decks which are usually applied for roofing and floor industries, and sometimes for bridge construction as well. The most popular steel decks produced by our metal deck roll forming machine are currently used in the industrial applications.

For the roofing decking machine un-coiler, many clients will equip 10 tons capacity and with coil car for heavy weight loading

Description/Technical Parameter details of complete line:

• 10TX1500mm Hydraulic de-Coiler with coil car

Expansion system by hydraulic group, Pump motor: 7.5KW

Driven motor to run the coil, Motor: 7.5KW

Inverter brand: TAIWAN Delta brand

Coil Inner-diameter=510+/-30mm

Coil width = Max.1500mm

Taper wedge expand type

Load capacity = Max. 10Tons

Snubber arms on top by pneumatic or hydraulic as per order

The coil car included as standard

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

Schneider brand low voltage electric elements

• Product Rack Un-powered, 3 units

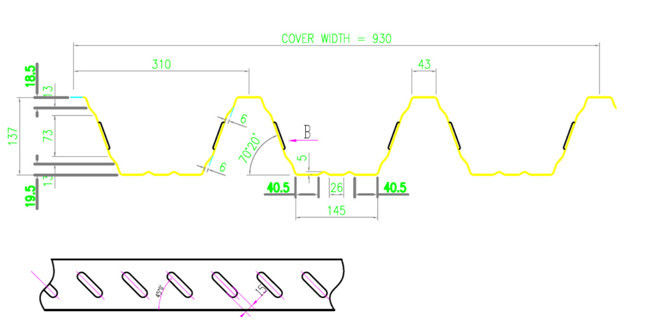

Profile Drawing/Layout/Equipment reference pictures:
