C profile Purlin roll forming machine, galvanized sheets

Application:

C and Z steel purlin are necessary for the modern steel industrial buildings, and some residential building as well, and various kinds of c/z purlin roll forming machines have been developed to produce C/Z/U steel purlin.

In the markets there are c purlin roll forming machines for the production of C steel sectional channels, the below machine design is the classic design for post punching, post cutting design

Quick Detail:

1. Thickness : 1.5mm-3.0mm
2. Material : Galvanized sheets
3. Material weight : 5Mt
4. Coil inner diameter : 508mm
5. Driven way: by 18.5kw driven motor
6. Cutting way: by hydraulic power pack
7. Cutting tolerance : ±1mm

Machine list:

1. Hydraulic De-coiler or Manual Un-coiler rack
2. Pre-leveling device
3. Roll forming machine
4. Hydraulic Post-punch & Post- cut device
5. Run out table
6. PLC control systems

Description/Technical Parameter details of complete line:

• 5TX600mm Hydraulic Un-coiler or manual de-coiler

Un-powered; Load capacity= MAX.5Ton

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil inner–diameter=510+/-30mm

Coil Width= MAX.600mm

Mandrel rotation: Draft type

• Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

• Roll forming machine with cutting details as below table :

• PLC Control System

Control the quantity & cutting length automatically

Combined with: Siemens brand PLC and Touch Screen

Schneider brand Inverter, Omron encoder, etc

Cut-to-length tolerance≤±1mm

Control voltage 24V

• Product Rack 4 meter long ,rolled type

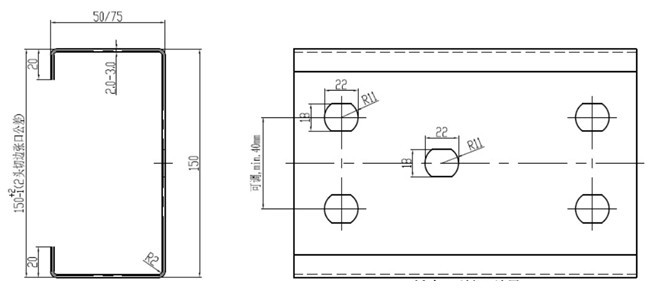

Profile Drawing/Layout/Equipment reference pictures:
