Purlin roll forming machine with flying cut, 4mm thick, heave gauge
pulin, non – stop cut
Application:
C and Z steel purlins are necessary for the modern steel industrial
buildings, and some residential building as well, and various kinds
of c/z purlin roll forming machines have been developed to produce
C/Z/U steel purlins.
In accordance with different requests for C and Z steel purlins, in
the markets there are c purlin roll forming machines for the
production of C steel sectional channels, z purin roll forming
machines for the manufacturing of Z shaped channels and
interchangeable c/z purlin roll forming machines which are designed
to produce both C and Z steel purlins without replacing any rolling
tools or cutting dies.
To improve the speed, there are flying cut design means non-stop to
cut design, the machine no need reduce the speed to stop to cut and
improve the production speed highly
Quick Detail:
- Thickness : 2mm-4mm
- Material : Galvanized sheets
- Material weight : 5Mt
- Coil inner diameter : 508mm
- Driven way: by 22kw driven motor
- Cutting way: by non-stop cutting device
- Cutting tolerance : ±1mm
Machine list:
- Hydraulic De-coiler
- Pre-leveling device
- Roll former
- Simple cooling systems
- Flying cutting device
- Run out table or automatic stacking device
- Siemens PLC and IOP/ touch screen, Schneider brand inverter
Description/Technical Parameter details of complete line:
- 8TX500mm Hydraulic Un-coiler
Hydraulic system to expand coil inner hole, Pump motor: 3KW
Coil Inner-diameter= 510±30mm.
Coil Outer-diameter Max. 1600mm
Load Capacity: Max. 8Tons;
Coil Width Max. 500mm
Taper wedge expand type instead of Link-connect expanding system
Driving motor with gear box with brake to turn the coil, 5.5KW,
Manual frequency speed control
Inverter brand: Delta, Taiwan brand
Hydraulic pressing arm for top holder, to avoid coil become loose
when stop to be packed
Support arm at the end of the shaft to for stable loading/running
5 Tons coil car
Up/Down stroke of Coil Car: Max. 300mm
Forward/backward stroke of Coil Car: Max. 1000mm
Pre-Level Device with 4 over 3 shafts to remove the Coil-set
Share the same motor with the roll former
- Roll forming machine with cutting details as below table :
| Suitable roll forming material | Color steel sheet or galvanized steel sheet |
| Thickness | 2.0-4.0mm |
| Carriage Frame design | Heavy wall-plate-frame-type thickness 80mm |
| Rolling mills forming stages | 15 stages |
| Material of forming roller | Cr12Mov, heat treatment |
| Shafts Diameter | Φ95mm |
| Main motor power | 22Kw |
| Production speed | 15m/min |
| Hydraulic group power | 11 Kw |
| Cutting carriage movement driven motor | Yaskawa brand 4.8KW servo motor |
| Material of cutting blade | Cr12Mov, heat treatment |
| Electric Voltage Standard | 380V/50Hz/3PH or as the customer's requirements |
| Major Color of Machine Painted | RAL 5015(Blue) or as per customer’s requirements |
Control the quantity & cutting length automatically
Combined with: Siemens brand PLC and Touch Screen
Yaskawa brand Servo motor driver (Yaskawa),
Schneider brand Inverter, Omron encoder, etc
Cut-to-length tolerance≤±1mm
Control voltage 24V
- Product Rack 4 meter long ,rolled type

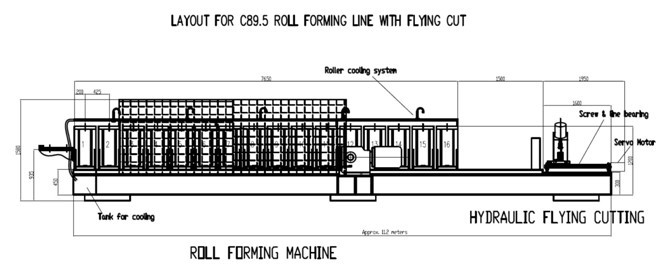

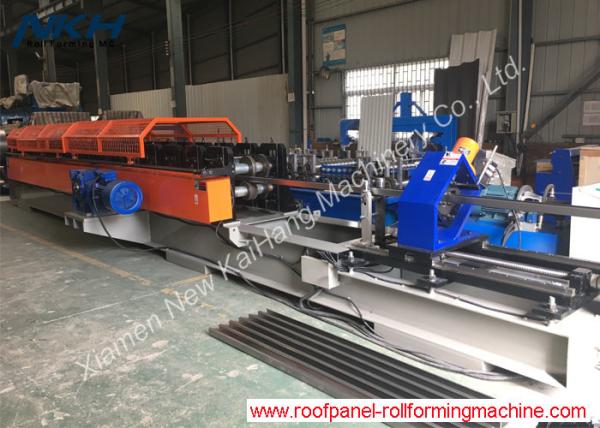

Profile Drawing/Layout/Equipment reference pictures:
