    Blue Roofing Sheet Crimping Machine , Hydraulic Crimp Panel Curving Machine

    Metal sheet curving machine, hydraulic crimp curving machine


    General Introduction :

    A hydraulic curving machine is necessary to produce crimping curved panels or no-crimp curved corrugated sheets mainly applied as roofing of warehouses, military camps, storages, parking sheds and so on.

    There are some curving panels with no crimping, especially corrugation curving sheets which provide better out looking. Hydraulic curving machines have been designed for automatic and continuous production of crimping curved roof panels or curved corrugation roof sheets under the control of PLC system.


    Quick Detail:

    1. Thickness : 0.4-0.6mm
    2. Material : G550, PPGI
    3. Input width : 914mm
    4. Effective width: 760mm

    Machine list:

    1. Feeding table with rubber rollers
    2. Servo motor feed in
    3. Quick change pressing dies with cassette design
    4. Horizontal or vertical direction operation design
    5. PLC control systems

    Description/Technical Parameter details of complete line:

    • details as below table :
    Suitable roll forming materialColor steel sheet
    Thickness0.4mm-0.6mm
    Driven motor1.1Kw Siemens brand motor
    Carriage Frame designHorizontal or vertical direction
    Hydraulic group5.5Kw
    The min. flat edge350mm
    Curved Radius450mm
    Pressing diesConvex/Concave
    Electric Voltage Standard380V/50Hz/3PH or as the customer's requirements
    Major Color of Machine PaintedRAL 5015(Blue) or as per customer’s requirements

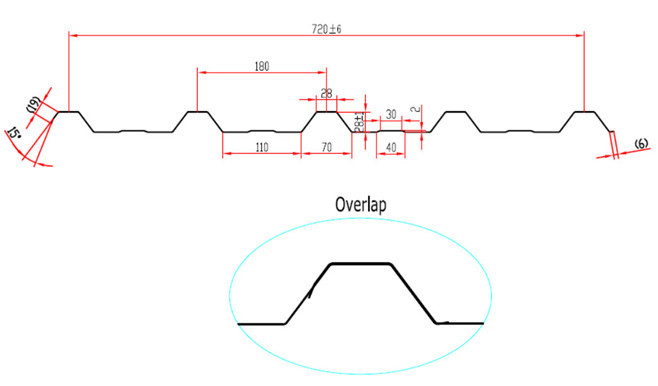

    Profile Drawing/Layout/Equipment reference pictures:


    Blue Roofing Sheet Crimping Machine , Hydraulic Crimp Panel Curving Machine
