Downspout roll forming machine, roll former, 1.2mm thick, GI, pipe roll forming mc, downpipe roll forming machine

Brief Introduction of Downspout Roll Forming Machine:

Right at this moment there are two kinds of downspout roll forming machines in ther market for the manufacturing of square and round rainspouts: Stationary downpipe roll forming machine and Portable downpipe roll forming machine.

A downpipe roll forming machine (square or round, rectangular or circle) is technically capable to be running both manually and automatically as per different customers’ needs. Manual running is most of time required for installation or trial, and auto running is made for the continuous production of required downpipes or downspouts.

Quick Detail:

1. Thickness : 1.2mm
2. Material : Galvanized Sheets
3. Input width : 218mm
   1. Material weight : 3MT
   2. Coil inner diameter : 470mm
   3. Driven way: by driven motor
   4. Cutting way: saw cut
   5. Cutting tolerance : ±1mm

Machine list:

1. 3T*600mm hydraulic un-coiler
2. Roll former
3. Hydraulic cutting device
4. Run out table
5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic Un-Coiler

Hydraulic system for expansion coil-inner-hole with 4 palms

Link-connect expanding system

Pump power=1.5KW

Frequency Inverter to regulate turning speed: Motor: 2.2KW

Load capacity=3 Ton; Coil Inner – diameter =451-530 mm

Coil outer-diameter=Max. 1500 mm

Coiler Width=Max. 600 mm

Driving motor to turn the coil

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack Un-powered, 3 units

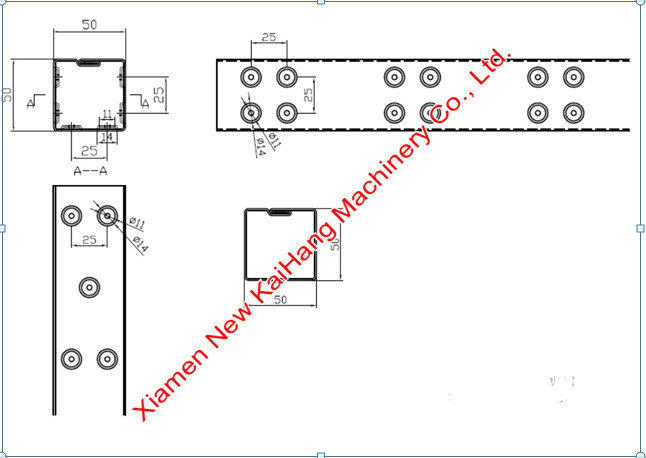

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
