Shutter door guide rail roll forming machine

Quick Detail:

1. Thickness : 0.8-1.2mm
2. Material : GI, 350Mpa
3. Input width : 432mm
   1. Material weight: 3MT
   2. Driven way: by 11Kw driven motor
   3. Cutting way: stop to cut, there is waste after cut-off
   4. Cutting tolerance : ±1mm

Features:

A rolling shutter door track is a rail or channel in which rolling shutter doors (made up of small horizontal interlocking roller shutter slats or rolling shutter door panels) are guided when raised up and lowered down to open or close. There are different types of rolling shutter door track or guide rails used for rolling shutter doors and it is important to make clear what kind of door tracks used in your markets before the purchasing of a rolling shutter door track roll forming machine.

Machine list:

1. 3Tons*600mm hydraulic de-coiler
2. Roll forming machine
3. Cooling system for each stage
4. Rubber sealing device for silence guide
5. Hydraulic cutting device
6. Run out table
7. PLC control cabinet

Description/Technical Parameter details of complete line:

• 3TX600mm Hydraulic de-coiler

Un-powered; Load capacity= MAX.1.5Ton

Hydraulic system for expansion coil-inner-hole with 4 palms

Link-connect expanding system

Pump power=1.5KW

Drag off turning type

Load capacity=3Ton

Coil Inner – diameter =510 30mm

Coil outer-diameter=Max.1500 mm

Coiler Width=Max. 600 mm

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

• Product Rack 4 meter length rolled type

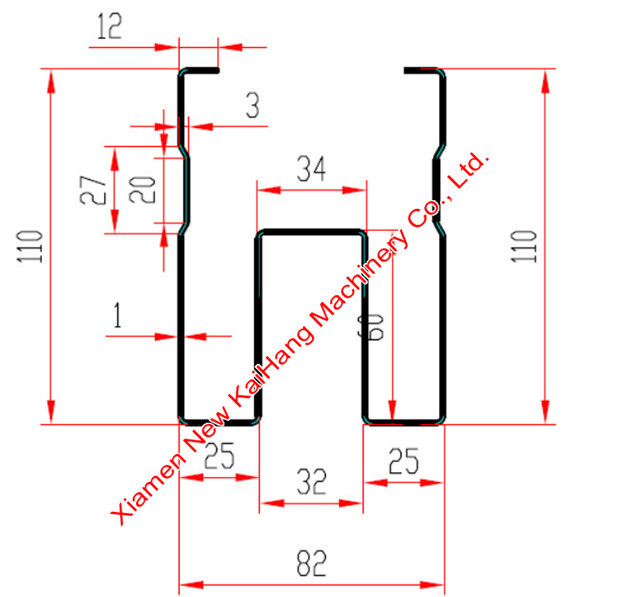

Profile Drawing/Layout/Equipment reference pictures:
