Light steel Coil Cut To Length & Punch & Recoiling production line 1.0x100mm, coil cut to length machine

Quick Detail:

1. Thickness : 0.4-1.0mm
2. Material : GI, PPGI, or Stainless steel, Aluminum
3. Line speed : 15meter/min
4. Material weight : 200kgs-1Mt normally
5. Coil inner diameter : 508mm
6. Cutting tolerance : ±1mm

Application:

Metal sheets or strips suppliers always need slitting and cut to length machine line for the production of metal sheets with different widths or lengths from GI, PPGI, or Stainless coils in large quantities.

GI, PPGI or Stainless coils are always brought to make wide metal sheets, like roll formed roofing or wall panels, while there are many occasions narrow steel strips are necessary, for example, the production of stud and tracks, roof battens or angle steel bars is always made from narrow steel strips.

The recoiling line with punch and recoiler is equiped with re-coiler, mechancial auto feed in and punch andrecoiler can get baby coils to make roof batten, ceiling, gutter, fascia panel machine.

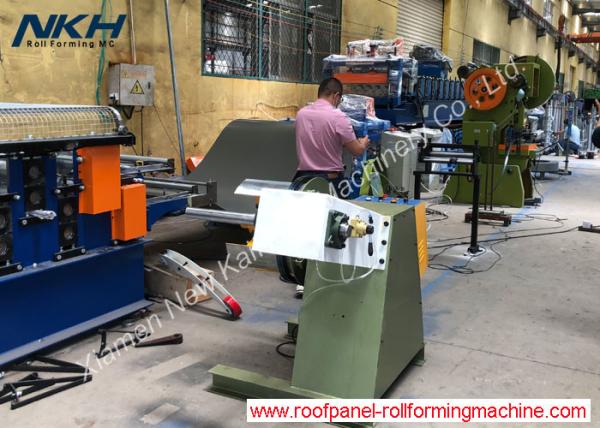

Machine list:

1. 0.5Tons manual de-coiler rack
2. Servo feed in
3. Press punching device
4. Recoiler rack
5. Siemens PLC and IOP/ touch screen, Schneider brand inverter

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic Un-Coiler with coil car
• Simple pre-leveling device
• Slitting and Recoiler details as below table :

Profile Drawing/Layout/Equipment reference pictures:

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
