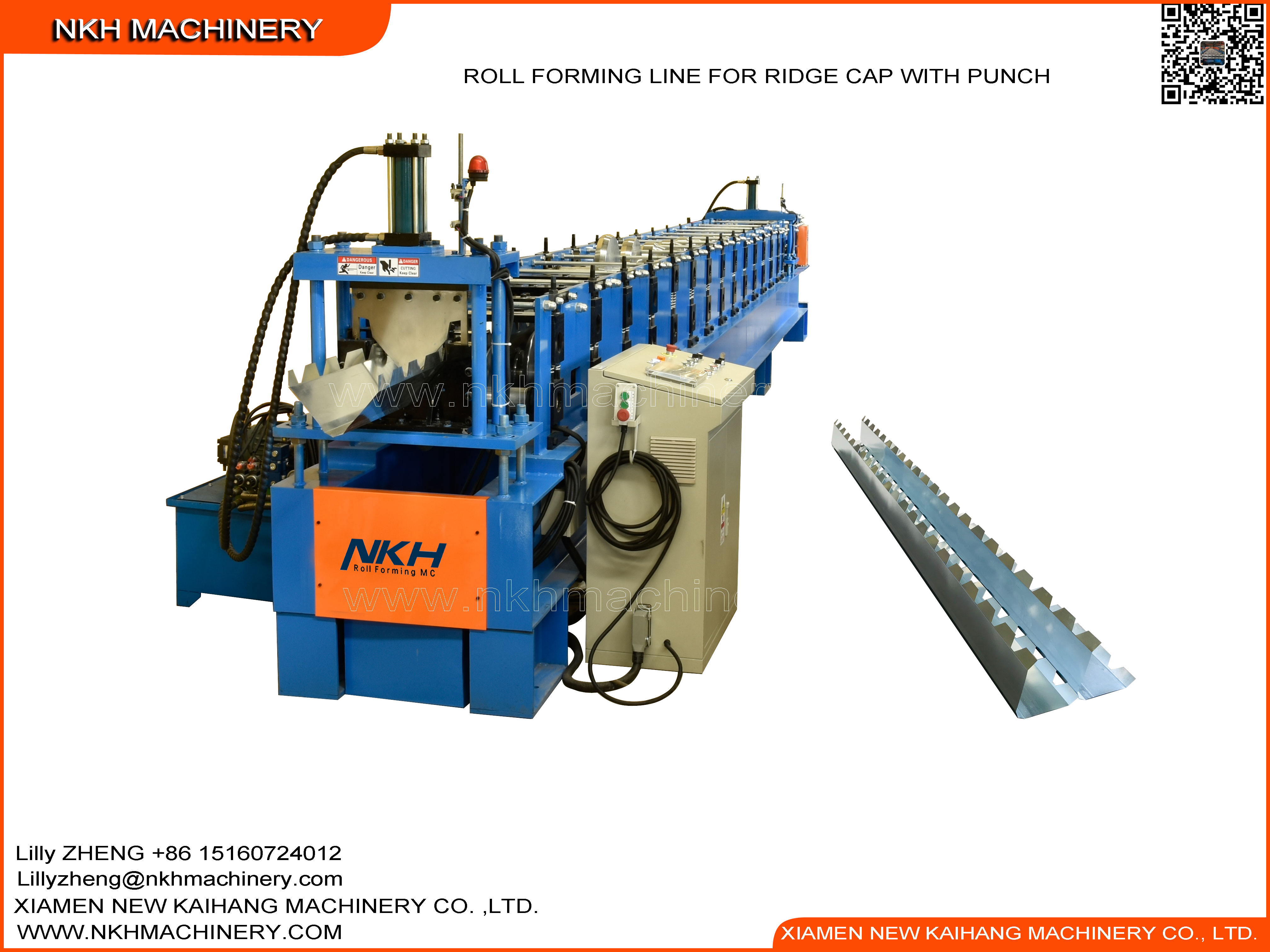

    Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge Cap

    Ask Lasest Price
    Brand Name : NKH ROLL FORMING MC
    Model Number : YX181-238 Ridge cap
    Price : negotiable
    Supply Ability : 5 sets/months
    Delivery Time : 45 working days
    Certification : CE/CSA/SONCAP
    • Product Details
    • Company Profile

    Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge Cap

    Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge cap


    1. Technical parameters:

    Raw material
    material specsheet, galvanized steel sheet, aluminum sheet
    thickness of coil sheet0.25-0.5mm
    Machine details
    roller materialHigh grade NO. 45 forged steel with 0.03mm hard chrome plating
    shaft materialHigh grade NO. 45 carbon wrought steel
    cutting bladeCr12 mould steel with quenched treatment
    diameter of shaft75mm
    forming steps18 rows
    productivity15m/min, punch not included
    hydraulic station power7.5 KW
    hydraulic pressure10-12MPa
    controlling systemSiemens PLC computer control
    material of cutting tableCr12 mould steel with quenched treatment
    appearance size8500mm*1150mm*1510mm
    hydraulic oil40# hydraulic oil
    Electric tension380V 50 Hz 3 Phase or as your requirements
    • Electronic control system

    Description


    • The machine used well-known brand PLC control technology. To realize the automatic machine
    • The system to provide friendly man-machine interface, It can be set batch, workpiece length and number, etc.
    • Encoder count, count and length with function.
    • PLC touch screen adopt domestic famous brands.

    2. Profile Drawings

    Full Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge Cap

    3. LaFull Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge CapFull Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge CapFull Automatic Roll Forming Machine , Galvanized Sheet Ridge Cap Machine Total Power 11kw, Flashing Ridge Cap
