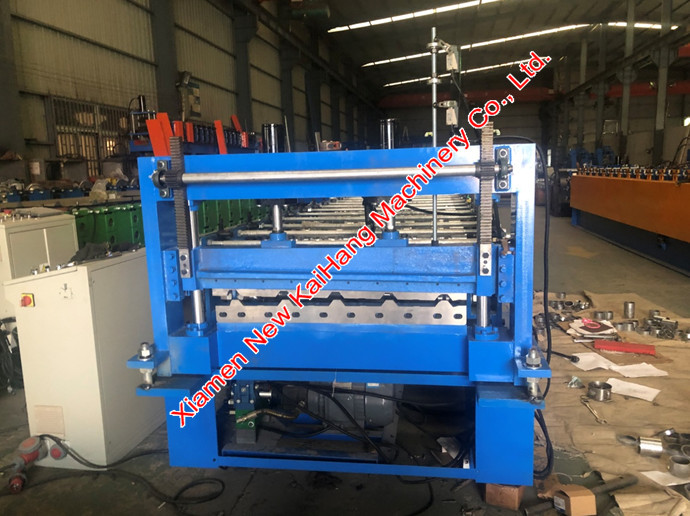

Roll forming machine, panel machine, Trimdeck 760, Roof panel, in buildings

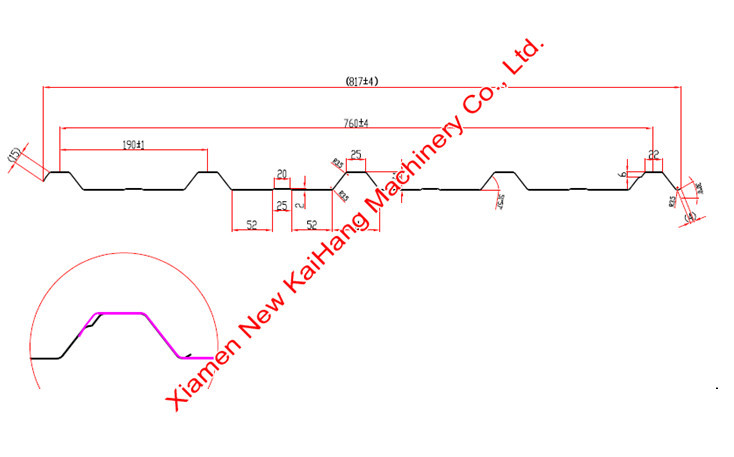

Roof Panel Technical Parameter

1. Steel Sheet Thickness: 0.2-0.45mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 5 ton passive decoiler
6. Forming Speed: 12-15m/min
7. Roller Groups: 18 stations upper and 16 stations down
8. Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel or color-coated coil
10. Principal Axis: 45# high grade steel with quenching treatment
11. Main motor power: 7.5 Kw

12. Hydraulic power: 4.0Kw


Roof Panel Main Components

NKH Machinery is an experienced manufacturer of a wide range of roll forming machines, such as panel/roofing tile /purlin /ridge cap /pipe/ metal deck lines/cut to length & recoiling lines/ crimping/curving machines/folding machines, etc.

Over 10 years of experience has allowed us to become aware of and to incorporate the best practices from around the World. It has allowed us to develop our company’s awareness of the importance of design, performance and quality standards in all aspect of the development and delivery of modern roll forming lines.

Excellence is our expectation. A consistent commitment to quality is something we maintain throughout every level of our organization and every individual within it. Whether working in parts or assembly, service or sales, each member of the NKH machinery team participates in the development process of each machine we create. We will meet your high standards by taking full advantage of the experience, creativity, and wisdom each member of our team has to offer. Our overall goal is to ensure the best possible outcome for you, assisting you in generating profits that are well-worth your investment with a NKH Machine.

We are ready to meet you anywhere in the world to discuss your roll forming requirements and you are welcomed to call Our Sales Team to take your initial enquiry.
