    Roofing/tile roof roll forming machine, metal forming, cold rolling, double layer, steel dual layer

    Ask Lasest Price
    Brand Name : NKH ROLL FORMING MC
    Model Number : metal roofing/roofing tile
    Price : negotiable
    Supply Ability : 5 sets/months
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Roofing/tile roof roll forming machine, metal forming, cold rolling, double layer, steel dual layer

    Roofing/tile roof roll forming machine, metal forming, cold rolling, double layer, steel dual layer


    1. Description of double layer roof roll forming machine


    The double layer forming machine can make two different types wall and roof panels in one machine,including glazed roof tile,roof/wall panel style.


    This design of the double layer roll forming machine could increase your productivity and save space,save the costs.The machine max roll speed can reach to 45m/min.This is very popular in abroad due to it high efficiency and can work automatic


    2. Main technical details of double layer roof roll forming machine


    No.
    1Material of the profileGI or color steel
    2Thickness range0.3-0.8mm
    3Main motor power7.5kw
    4Electric Voltage380V, 50Hz, 3Phase
    5Roll station20/18 stations
    6Roller material45# chrome plated surface with chrome,CNC
    7Shaft diameter¢78/95mm
    8roll forming speed25m/min for roofing, 4-5m/min for tile roof
    9Transmissionby chain, one inch, single line
    10OthersRoll former has leveling bolts in the base for adjust the leveling
    Machine base frame adopt H beam welding steel
    In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
    Machine adopt new station to make machine more strong
    To avoid accidents,all of drive part adopt protect cover

    3. Profile Drawing

    Roofing/tile roof roll forming machine, metal forming, cold rolling, double layer, steel dual layer

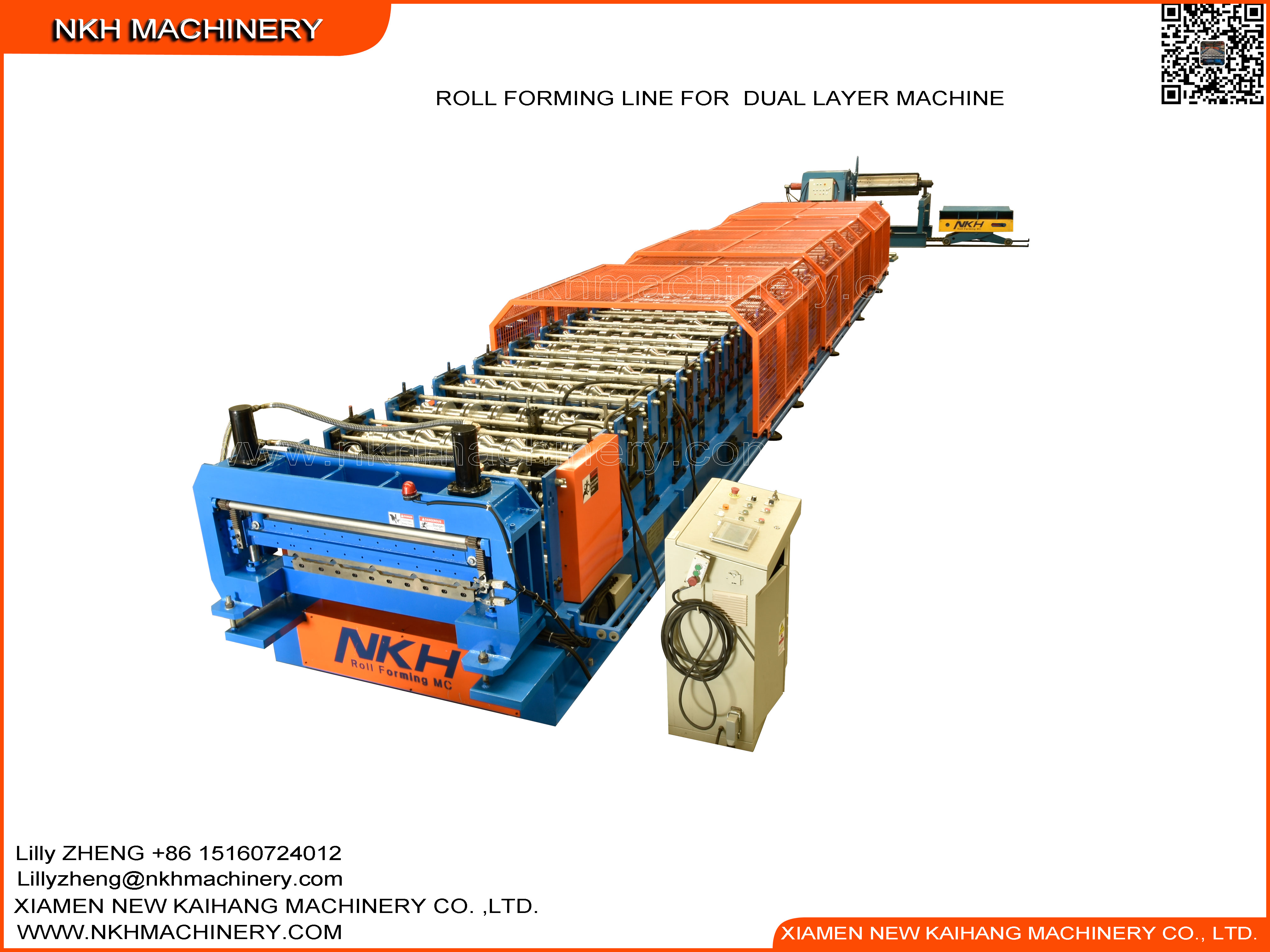

    4. Machine pictures for reference

    Roofing/tile roof roll forming machine, metal forming, cold rolling, double layer, steel dual layerRoofing/tile roof roll forming machine, metal forming, cold rolling, double layer, steel dual layer
